Name: HYG-X Transmission Line Fault Distance Tester
Brand: Wuhan Huaneng Yangguang Electric Co., Ltd
Availability: InStock

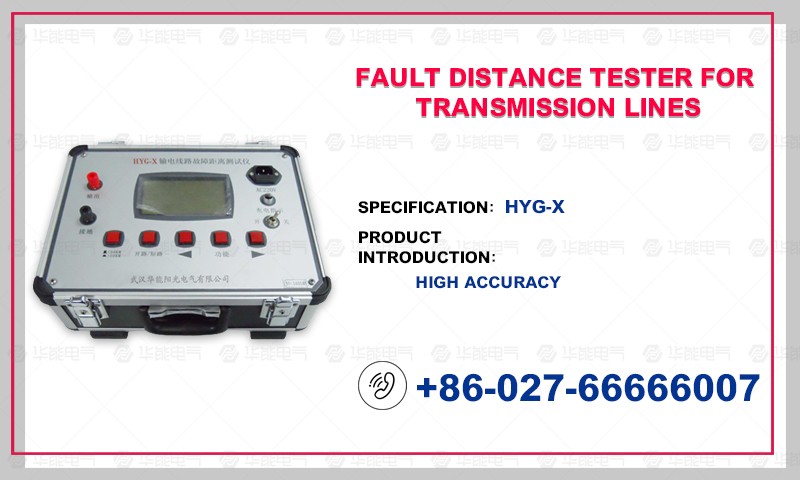

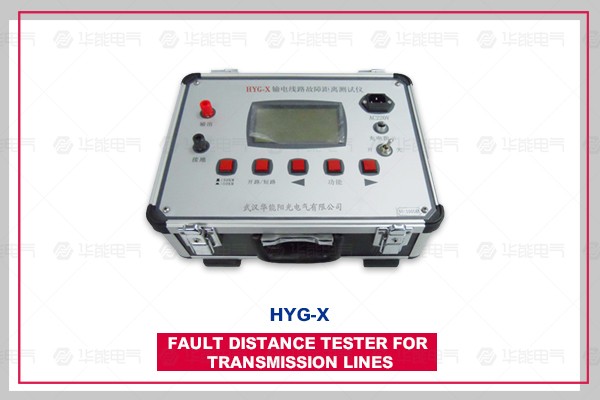

HYG-X Transmission Line Fault Distance Tester

Product Manuals National Standard Product report

Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058

Product Introduction

The HYG-X transmission line fault distance tester is used to measure the distance from the fault point to the measuring point (transformer) when the overhead transmission line is permanently grounded (short circuit) or open circuit.

This instrument is suitable for overhead transmission lines of 35 kV and above. When permanent single-phase grounding or broken-line fault occurs, as long as the fault line is tested in the substation, the fault distance can be accurately measured, the fault pole and tower can be determined, which is convenient for the rush repairman to quickly find the fault and shorten the rush repair time.
Product parameters

Scanning Range: (100Hz-100kHz) Segmental Selection

Measuring distance: 2-100kM

Voltage level of measured line: 35kV-500kV

Display LCD: 240 x 128 lattice (black and white)

Display mode: image and text

Output Voltage: Vp-p>8V

Internal battery life: 2-4 hours per charge

Charging current and time: 100-200 mA/12 hours

Volume: 260 (wide)x 350 (long)x 190 (high) mm

Weight: 4.5kg
