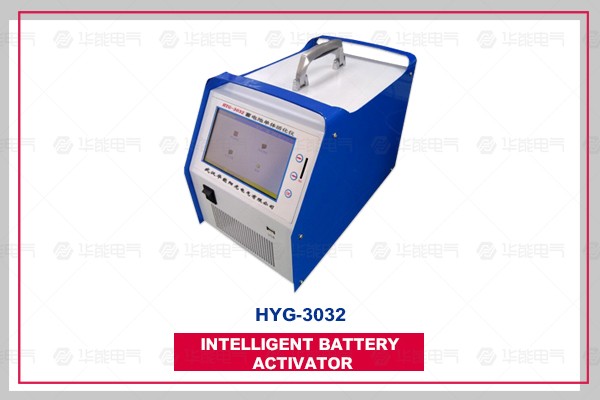

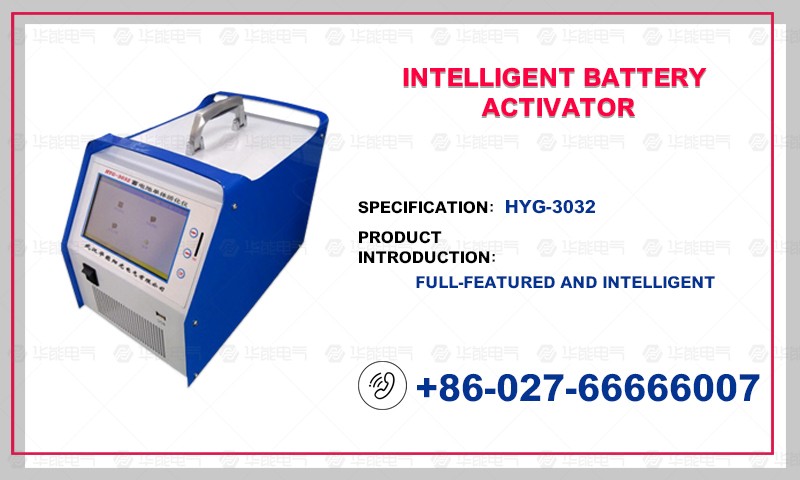

The equipment is a special equipment for activating VRLA batteries (hereinafter referred to as VRLA batteries) whose battery voltage is 2V, 6V or 12V and the capacity of VRLA batteries is backward due to vulcanization and crystallization of plates. It has the functions of "activating" and "checking discharge" and "automatic charging" for storage batteries.

This equipment adopts the current advanced testing technology principle, and has made a series of breakthroughs in the research and application of new technology, new devices, new materials and new technology. It can check the discharge test according to the actual situation of different backward batteries, charge automatically in three stages, or set up multiple cycle cycles to charge and discharge batteries for many times, so as to re-activate the active substances which have failed the plates of batteries. Enhance the capacity of backward batteries. At the same time, it is equipped with PC application software to upload the collected data to the computer for various analysis.

The instrument has large power, small size, light weight, complete functions of data management software of PC, friendly and humanized man-machine interface, which greatly reduces the workload of battery daily test and maintenance, and is the best assistant for battery maintenance.

Single Voltage Measurement Types

2V/6V/12V

Single Voltage Measurement Range

2V:0~3V 6V/12V:0~16V

Single Voltage Resolution

2V:0.001V 6V/12V:0.001V

Voltage Measurement Accuracy

0.5%

Charging and Discharging Current Working Range

2V:1A~100A 6V:1A~30A 12V:1A~30A

Accuracy of Charge and Discharge Current Control

0.1A

Current Measurement Accuracy

1%

Battery capacity checking range

2V:20Ah~1000Ah

6V:20Ah~300Ah

12V:20Ah~300Ah

working voltage

AC 220 + 15%

Cooling mode

Forced air cooling

work environment

Temperature: 0 40 Humidity: 20% - 80% RH

Storage conditions

- Packaging and Storage at 20 ~70

Display mode

High brightness large screen LCD

Outward Size (Width * High * Thickness)

Weight

11kg



The instrument is operated by touch screen, and the interface can be operated directly by using touch pen or finger.

There are internal storage and external SD card storage modes for data storage.

It has over-voltage, over-current and over-heat protection functions.

Activation function: In the off-line state of the battery, the single battery can be activated. Before activation, the instrument can automatically perform activation function by setting parameters such as activation cycle number, single activation charging and discharging time, protection voltage, etc. The data of battery voltage, charging/discharging current, charging/discharging capacity and charging/discharging time can be displayed in real time. The activation process can be stopped after the execution of the preset activation cycle or when the operation is terminated artificially.

Discharge function: In the off-line state, the battery is discharged by constant current check with intelligent false load, and the parameters of "discharge current", "discharge time", "discharge capacity" and "termination voltage" are set. The discharge function is automatically performed by the instrument, and the data of discharge current, discharged capacity of the battery, battery voltage and discharging time are displayed in real time when the battery reaches pre-discharge. The discharge test can be stopped by setting the termination condition or artificial termination operation.

Charging function: When the battery is on-line floating charge or off-line, it can automatically charge the battery, and set parameters such as "charging current", "charging time" and "termination voltage". The instrument can automatically perform charging function, and real-time display data such as charging current, battery charging capacity, battery voltage, charging time, etc. When the battery reaches the preset termination. Charging conditions or artificial termination of operation can stop charging.

Fast measurement function of internal resistance: (optional) discharging after the battery is separated from the system, it takes only 1 to 2 minutes to measure the evaluation capacity and internal resistance of the battery.

High brightness color screen LCD display, the display effect is clear and beautiful.

The upper computer data management software has powerful functions and friendly interface. It provides functions of data management, printing, analysis, report statistics and automatic generation of test reports.
