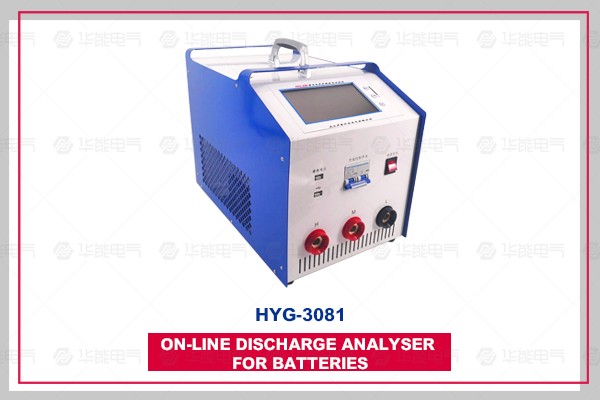

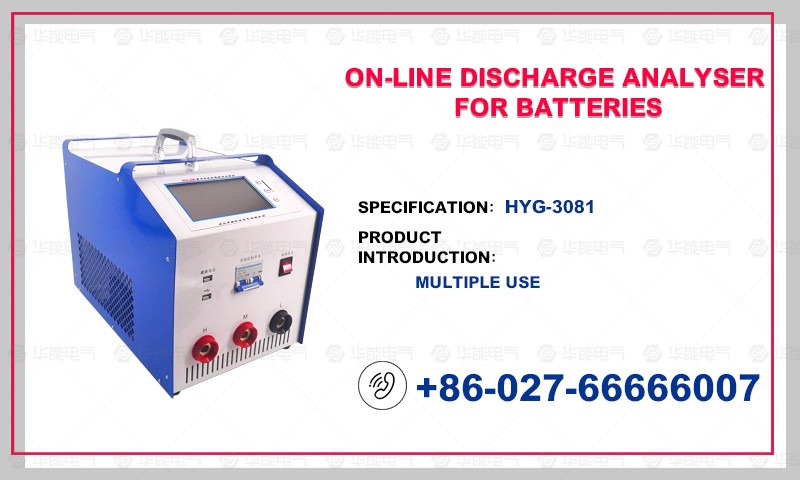

HYG-3081 Battery Full Online Discharge Analyser

The instrument integrates off-line or on-line charging, discharging and on-line monitoring functions, and is multi-purpose. Reduce the cost of enterprises, reduce the labor intensity of maintenance personnel, and provide a comprehensive and scientific means for battery and UPS power maintenance.

Product Manuals National Standard Product report

Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058

Product Introduction
Product Portfolio
Product video

Product Introduction

The instrument integrates off-line or on-line charging, discharging and on-line monitoring functions, and is multi-purpose. Reduce the cost of enterprises, reduce the labor intensity of maintenance personnel, and provide a comprehensive and scientific means for battery and UPS power maintenance.

The instrument has large power, small size, light weight, friendly and humanized man-machine interface, which greatly reduces the workload of battery routine test and maintenance, and is the best assistant for battery maintenance.
Product parameters

Working power supply: single-phase AC220V + 10% (for demonstration only), DC48V

Access Load Voltage: DC42V-60V

Shape size: 520 x 390 x 505

Whole machine weight: about 53Kg

Battery types: lead-acid batteries

Nominal voltage of battery pack: 48V

Current measurement range: discharge current 10A-300A charging current 2A-300A

Constant current amplifier/charging current control accuracy: 1%

Voltage range of constant current discharge: 42V-60V

Voltage stabilization accuracy: 1%

Single Voltage Types: 2V, 6V, 12V

Single Voltage Resolution: 2V/6V:0.001V 12V:0.01V

Display mode: 7 inch color touch screen

Insulation Strength: Input to case (> 1500V)

Efficiency: > 0.90
Product features

Working power supply: single-phase AC220V + 10% (for demonstration only), DC48V

Access Load Voltage: DC42V-60V

Shape size: 520 x 390 x 505

Whole machine weight: about 53Kg

Battery types: lead-acid batteries

Nominal voltage of battery pack: 48V

Current measurement range: discharge current 10A-300A charging current 2A-300A

Constant current amplifier/charging current control accuracy: 1%

Voltage range of constant current discharge: 42V-60V

Voltage stabilization accuracy: 1%

Single Voltage Types: 2V, 6V, 12V

Single Voltage Resolution: 2V/6V:0.001V 12V:0.01V

Display mode: 7 inch color touch screen

Insulation Strength: Input to case (> 1500V)

Efficiency: > 0.90
