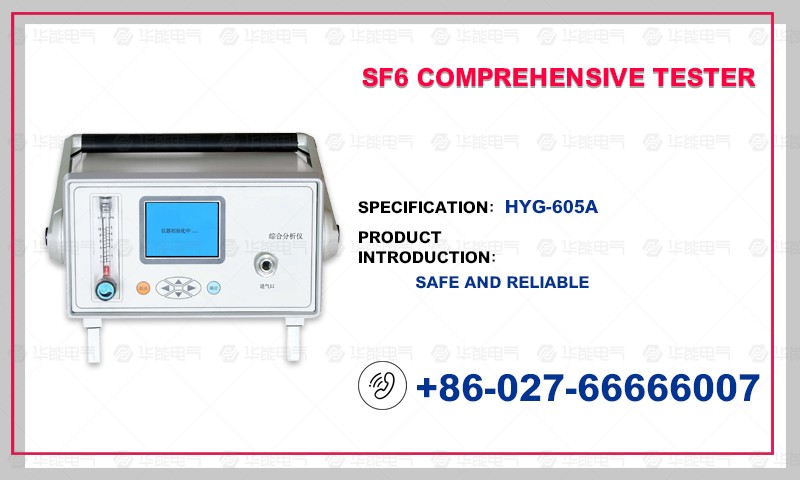

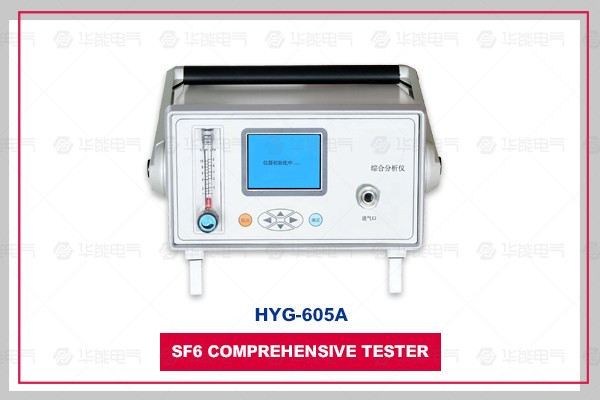

SF6 comprehensive tester is a combination of SF6 micro-water meter, SF6 purity meter and SF6 decomposition product analyzer. It concentrates on one instrument with three instruments. Three indicators can be detected by one field measurement, which saves gas in the equipment greatly, saves 2/3 gas consumption in one measurement, reduces the workload of users and improves work efficiency.

Purity (optional)

measuring range:0%~100%

measurement accuracy:+ 0.5%

Measuring time:<2 minutes.

The dew point

measuring range:-80℃~+20℃.

measurement accuracy:±1.0 (-60℃ +20℃)

                                 ±2 (-80℃~60℃)

Response time (+20 ℃):63% takes 5 seconds, 90% takes 45 seconds (-60℃ +20℃)

                                  63% takes 10 seconds and 90% 240 seconds (+20℃ ~60℃)

H2S

measuring range:0~100ppm

Minimum Detection Quantity:Less than 0.1ppm

Accuracy:+ 0.5%

Repeatability:Less than 2%

SO2

measuring range:0~100ppm

Minimum Detection Quantity:Less than 0.1ppm

Accuracy:+ 0.5%

Repeatability:Less than 2%

HF (optional)

measuring range:0~20ppm

Minimum Detection Quantity:Less than 0.01ppm

Accuracy:+ 0.5%

Repeatability:Less than 2%

CO (optional)

measuring range:0~1000ppm

Minimum Detection Quantity:Less than 1ppm

Accuracy:+ 0.5%

Repeatability:Less than 2%

ambient temperature:-30℃ +60℃

Ambient humidity:0-100% RH

Power Supply:AC 220V

Built-in rechargeable battery

Battery performance:Charging time: 20 hours; using time more than 10 hours.

weight:5 kilograms

size:50 x 150 x 300 mm3

working temperature:-40℃~+80℃

Fast gas saving: After starting up, the measuring time of every SF6 dew point is about 5 minutes, and the measuring time of SF6 purity and SF6 decomposition is about 2 minutes.

Self-locking connector: The self-locking connector imported from Germany is safe and reliable with no leakage.

Data Storage: With large capacity design, up to 200 sets of test data can be stored.

Curve function: Large screen curve shows dew point measurement process.

Clear display: LCD screen directly displays dew point, micro-water (ppm), SF6 purity, SO2, H2S, CO and HF content, environmental temperature, environmental humidity, time and date.

Built-in power supply: Built-in 4Ah rechargeable lithium batteries, sufficient once can work for 10 hours continuously.
