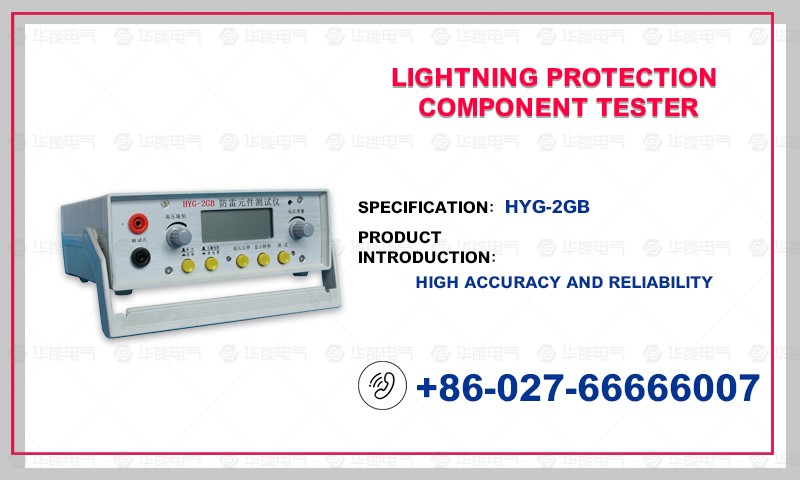

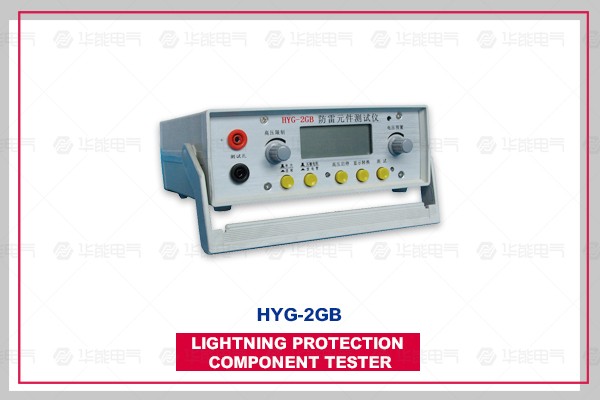

HYG-2GB Lightning Protection Component Tester

HYG-2GB lightning element tester is suitable for measuring DC parameters of overvoltage protection elements such as zinc oxide arrester (varistor), cermet discharge tube with two or three electrodes and vacuum arrester. It can also be used as voltage stabilizer and constant current power supply for other purposes.

Product Manuals National Standard Product report

Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058

Product Introduction
Product Portfolio
Product video

Product Introduction

HYG-2GB lightning protection element tester is suitable for measuring DC parameters of overvoltage protection elements such as zinc oxide arrester (varistor), cermet discharge tube with two or three electrodes and vacuum arrester. It can also be used as voltage stabilizer and constant current power supply for other purposes. High voltage short circuit protection, over current protection, high voltage preset, range adjustment and other functions, high voltage self-discharge time is less than 0.5 seconds.
Product parameters

1. Varistor measurement

Technical Indicators

Scope of measurement

Working error

Test conditions

Initial operating voltage U1mA

0 ~ 1999V

<1%+1d

1mA + 5 A

Leakage current I 0.75U1mA

0 to 199.9 A

Less than (+2 uA+1 d)

0.75U1mA

<1%+1d

2. Discharge tube measurement

Technical Indicators

Scope of measurement

Working error

Testing conditions

DC breakdown voltage Vsdc

5 ~ 1999V

<1%+1d

Voltage rise rate

100V/S + 10%

3. Other indicators

Insulation resistance: 6M(500V)

Voltage withstand: AC 1.5kV 50HZ 1min

Working temperature and humidity: 0 ~+40 C < 85% RH

Storage Temperature and Humidity: -10 +50 = 90% RH

Power supply: AC 220V 50Hz

DC 12V 0.5A (core + pole)

Power consumption: 8W

Shape size: 208 mm x 190 mm x 78 mm

Weight: <1kg
Product features

It is suitable for measuring DC parameters of overvoltage protective elements such as zinc oxide arrester (varistor), cermet discharge tube with two or three electrodes and vacuum arrester. It can also be used as voltage stabilizer and constant current power supply for other purposes.

High voltage short circuit protection, over current protection, high voltage preset, range adjustment and other functions, high voltage self-discharge time is less than 0.5 seconds.

It has the function of self-examination.

The measured data are displayed by 31/2 LCD digitally with high accuracy and reliability.

When measuring, the range can be set beforehand, and sound prompts can be given to the over-range test during the measuring process, which is suitable for device grouping and test discrimination.

Continuous measurement can be used to test batch samples uninterruptedly.

The panel function is simple and easy to operate.

Light weight, easy to carry.
