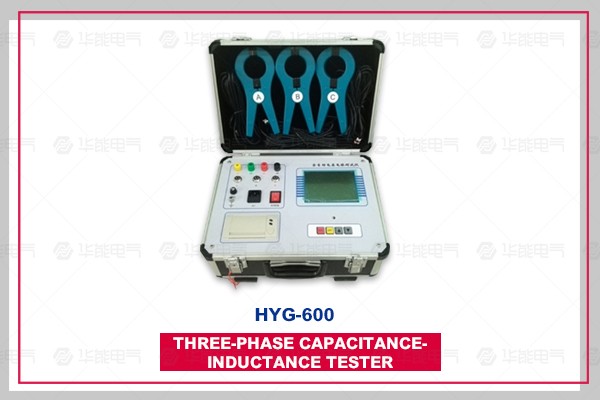

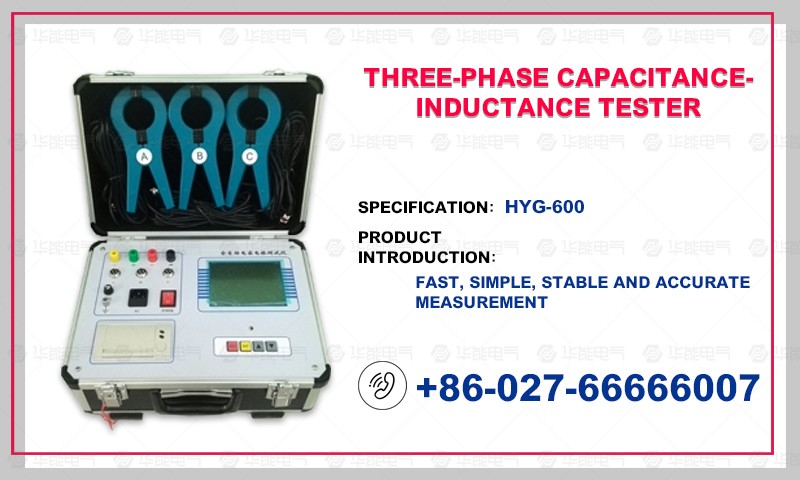

HYG-600 Three-phase Capacitance and Inductance Tester

The instrument output AC voltage 20V/2V, power 500W, mainly used for field compensation using standard capacitor/inductance verification, please confirm the standard capacitor/inductance load capacity, rated current.

Product Manuals National Standard Product report

Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058

Product Introduction
Product Portfolio
Product video

Product Introduction

The three-phase capacitance and inductance tester is specially developed for the problems existing in the field capacitance measurement of capacitors in substations. It focuses on solving the following problems:

(1) On-site measurement capacitors need to be disconnected, which is not only heavy workload but also easy to damage capacitors.

(2) Low output voltage of capacitance meter leads to low fault detection rate.

The instrument has the characteristics of small measurement workload, fast and simple, stable performance, accurate measurement and high fault detection rate.

(3) Measuring inductance of reactor.
Product parameters

1. Measurement range and accuracy of the instrument:

A. Capacitance measurement

(1) Measurable Capacitance Range: 0.1_3,300

(2) Measurable capacity range: 5-20,000 kvar

(3) Measurement accuracy: (+1.0% reading + 0.02 uF)

(4) Resolution: 0.001 uF

B. Current measurement

(1) Current measurement range: 0-20A

(2) Measurement accuracy: (+3.0% reading + 0.05A)

(3) Resolution: 0.01A

C. Inductance measurement

(1) Measurement range of inductance: small inductance mode 0.1mH~5mH

Large inductance mode 5 mH~50H

(2) Measurement range of inductance: 50m_~20K_

(3) Measurement accuracy: (+3.0% reading + 0.05 mH)

(4) Resolution: 0.01 mH

D. Resistance measurement range:

(1) Resistance measurement range: small resistance mode 50m~1

High resistance mode 1~20K

(2) Measurement accuracy: (+3.0% reading + 0.05_)

(3) Resolution: 0.01_

2. Working power supply:

Rated voltage: power frequency 220V + 10%

B. Rated frequency: 50Hz

C. Rated output: 2V/20V/500VA

3. Normal working conditions of the instrument:

A. ambient temperature: - 10 ~50.

B. Relative humidity: <90%

4. Display and print mode: LCD display full Chinese character display

Panel High Speed Printer

5. Shape/weight: 370*260*220 mm/15 kg
