I. Basic Errors

1.1 Reference working conditions

(a) Ambient temperature: (23 +5)degrees Celsius

(b) Environmental humidity: (45-75)% RH

(c) The measured signal waveform: sine wave, beta=0.02

(d) The measured signal frequency: (50+0.2) Hz

(e) The position of the current-carrying wire in the clamp: arbitrary

(f) Amplitude range of measured signal when measuring phase: 100-220V, 0.5A-1.5

(g) External reference frequency electromagnetic field interference: should be avoided

1.2 Basic Error Limit

1.2.1 AC Voltage (see Table 1)

Table 1: AC Voltage Measurement Errors

Limit of quantity

Resolving power

Basic Error Limit

20V

0.01V

(1.2% RD+2)

200V

0.1V

(+1.0% RD+2)

500V

1V

(1.2% RD+2)

Input impedance: each limit is 2M

2.2.2 AC Current (see Table 2)

Table 2: AC Current Measurement Errors

Limit of quantity

Resolving power

Basic Error Limit

200mA

0.1mA

(+1.0% RD+2)

2A

1mA

10A

10mA

1.2.3 phase

U-U, U-I, I-I (see table 3)

Table 3: Power Frequency Phase Measurement Errors

Range

Resolving power

Basic Error Limit

0~360 degrees

1 degrees

+ 3 degrees

Voltage Input Circuit Impedance for U1-U2 Phase Measurement: 40K

II. Work Errors

2.1 rated working conditions

(a) ambient temperature: (0-40)C

(b) Environmental humidity: (20-80)% RH

(c) Signal waveform measured: sine wave, beta = 0.05

(d) The measured signal frequency: (50 +0.5) Hz

(e) The position of the current-carrying wire in the clamp: arbitrary

(f) Amplitude range of measured signal when measuring phase

When measuring the phase of U1-U2: 30V-500V

Measuring I1-I2 phase: 10mA-10.00A

When measuring the phase of U1-I2 or I1-U2: 10V-500V, 10mA-10.00A

(g) External reference frequency electromagnetic field interference: should be avoided

2.2 Rating Error Limit

Under the rated operating conditions described in 1.1, the rated operating error limit of each measured quantity does not exceed twice the corresponding basic error limit.

III. Other Technical Characteristics

3.1 Display digits: three and a half

3.2 Sampling rate: 3 times per second

3.3 Power Supply: Single 9V Laminated Battery, Power Supply Current Less than 5mA

3.4 Profile Size

Shell size: 192mm *95mm *55mm

Clamp shell size: 140 mm * 42 mm * 20 mm

Clamp size: 7mm *9mm

3.5 weight

Epithelium: 280g

Measuring forceps: 2 x 200g

3.6 Storage Conditions

Temperature: - 10 ~50

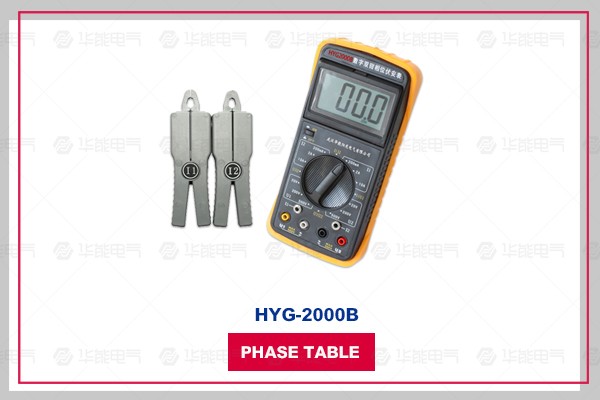

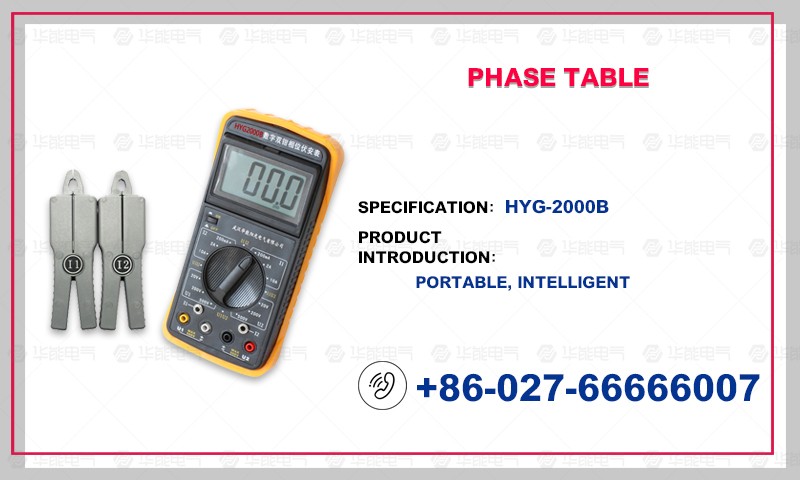

It is easy to measure the phase of U-U, I-I and U-I in the field, to distinguish the phase sequence of inductive, capacitive circuit and three-phase voltage, to detect the connection group of transformer, to test the secondary circuit and bus differential protection system, to read out the phase relationship between different groups of CT of differential protection, and to check whether the connection of watt-hour meter is correct or not. The clamp current transformer is used to input the measured current, so the measured circuit does not need to be disconnected. When measuring the phase between U1 and U2, the two input loops are completely insulated, thus avoiding the possible short circuit of the line under test caused by wrong wiring and burning the measuring instruments. The display uses a high contrast liquid crystal display with a word of up to 25mm and a screen angle of about 70 degrees, so as to obtain the best visual effect.

The instrument shell is made of Engineering insulating material and is equipped with rubber anti-vibration protective sleeve, which is safe and reliable.
