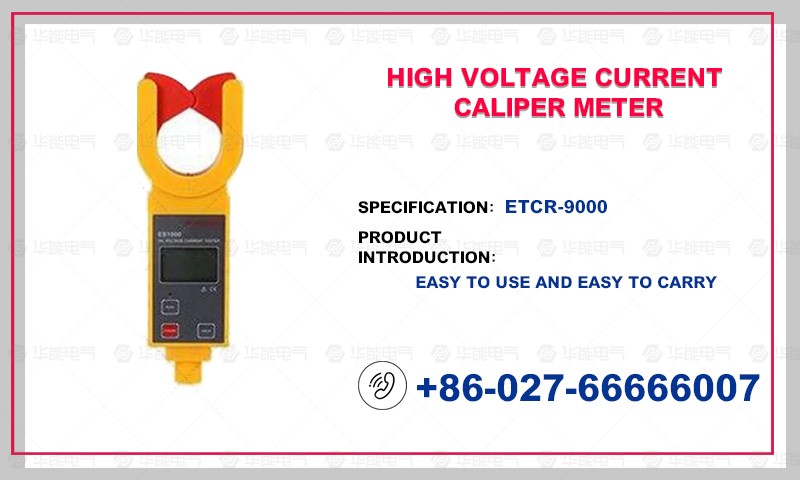

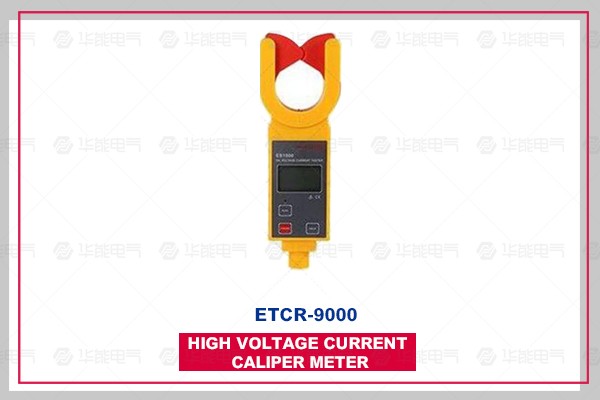

ETCR9000 High Voltage Current Caliper Meter

The high-voltage current caliper meter belongs to a high-voltage measuring tool, which is composed of a special clamp ammeter and a high-voltage insulating rod. The clamp ammeter uses a mask integrated circuit to connect the insulating rod to measure the current of the high voltage line with insulating outer skin under 60 kV or bare conductor below 35 kV.

Product Manuals National Standard Product report

Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058

Product Introduction
Product Portfolio
Product video

Product Introduction

The high-voltage current caliper meter belongs to a high-voltage measuring tool, which is composed of a special clamp ammeter and a high-voltage insulating rod. The clamp ammeter uses a mask integrated circuit to connect the insulating rod to measure the current of the high voltage line with insulating outer skin under 60 kV or bare conductor below 35 kV. When insulating rod is not used, it can also be used as high precision low voltage clamp ammeter and leakage ammeter, which can accurately measure the current of 0.1mA. It has the characteristics of simple use and convenient carrying.
Product parameters

Model

Range

Resolving power

Jaw size

Ordinary type

0.0mA-1200A

0.1mA

Phi 50mm

Wireless type

0.0mA-1200A

0.1mA

Phi 50mm

Insulated outer conductor and bare conductor are tested under 60 kV line voltage (operated with insulating pole).

1. Clamp size: _50mm

2. Measurement range: 0.0mA-1200A (50/60Hz automatic)

3. Test accuracy: +2%+5dgt

4. Sampling rate: 2 times per second

5. Outward Size: 87 mm long, 37 mm thick and 262 mm high

* 6. Receiver size: 100mm long, 35mm thick, 204mm high

7. LCD LCD Display Size: Common 48mm x 31mm

* 8. Wireless Receiver Display Size: 62mm x 44mm

9. In-machine battery: DC6V 4 section 7 alkaline battery, wireless reception: 5 section 1.5V5 alkaline battery.

10. Total Instrument Quality: 2.5Kg (Including insulating rods and batteries)

11. Insufficient voltage: LCD display "" symbol.

12. Working temperature: - 10 ~40 C;

13. Storage Temperature and Humidity: -10-60 C

14. Relative humidity: 0 31 75%, 31 40 50%.

* 15. Wireless Distance: 30 meters

16. Insulation pole: Five retractable insulating poles (5m) with insulation strength AC60kV/rms

* Parameters required for wireless type
Product features

Its wireless transmission test data, equipped with wireless receivers, can receive the measured data within 30 meters straight line (barrier-free), ensuring the high accuracy, high reliability and high stability of uninterrupted testing throughout the year.

The high-voltage current caliper meter also has the functions of peak holding, data holding, data storage and wireless transmission. Its special caliper ammeter can easily clamp or withdraw the tested conductor by pushing forward or pulling out the insulating rod, which saves time and speed.

It can be widely used in substations, power plants, industrial and mining enterprises, detection stations, electrical maintenance departments for current detection and field electrical work. Insulation pole has the characteristics of lightweight, moisture-proof, high temperature resistance, impact resistance, bending resistance and high insulation flexibility.
