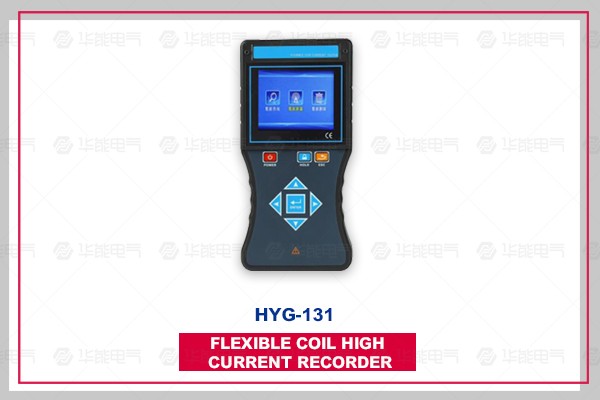

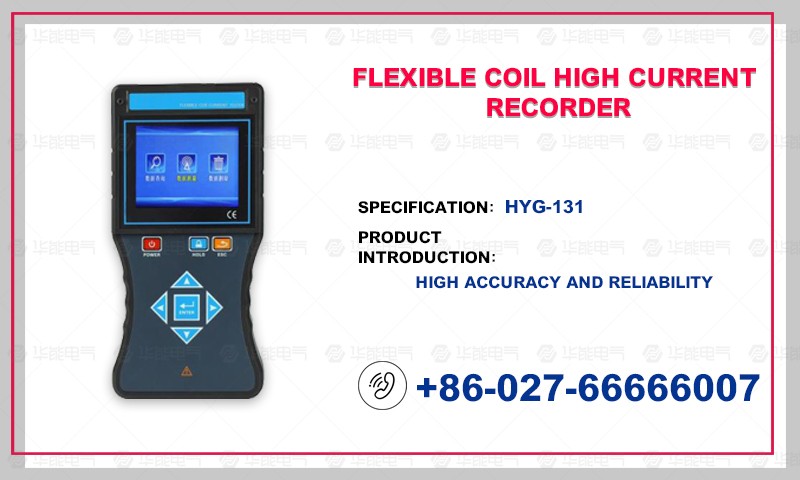

Flexible coil high current recorder is carefully designed and manufactured for on-line testing, monitoring, recording AC current, leakage current, waveform and frequency. It is composed of host, flexible coil, software and communication lines. It is widely used in electric power, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields. It is especially suitable for current testing in industrial environments where the signals are seriously distorted, such as densely arranged wires, transformer grounding core current testing near the wall, thick wire cable testing, relay protection, thyristor rectifier, frequency conversion speed regulating, semiconductor switch, power electronic conversion equipment, arc welding and so on.

Flexible coil, Rogowski Coil (Rogowski Coil), using advanced Rogowski coil (or Rogowski coil) technology, is a circular coil wound evenly on non-ferromagnetic materials. It has no hysteresis effect, almost zero phase error, no magnetic saturation phenomenon, extremely high linearity and strong anti-interference ability. The output signal is the differential of current to time. By integrating the output voltage signal, the input current can be restored. The measuring current range can be from milliampere to tens of thousands amperes. Flexible current clamp coil part has no bare metal conductor, non-contact measurement, safe and fast; its small size, light weight, exquisite appearance, soft and flexible, suitable for narrow environment and places with dense wire arrangement; high measurement accuracy, strong reliability, wide response frequency bandwidth, users can customize the length of coil according to their needs.

Host LCD display, clear at a glance. At the same time, it has relatively large storage space, can store 6000 groups of data, and also has the function of automatic storage interval setting, which can be set from 1 to 60 minutes.

Function

AC Current, Leakage Current, Large Current, Waveform, Frequency Measurement Record

Power Supply

DC 7.4V rechargeable lithium battery

Test mode

Flexible CT: The output signal is the differential of current to time. By integrating the output voltage signal, the input current can be restored.

Coil inner diameter

Internal diameter of 300mm (customized as required)

Range

AC 0.00A~20000A

Resolving power

AC 10mA

Accuracy

2%+3 DGT (conductor is in the center of flexible coil, 23 +2)

Coil length

About 1450 mm in length

Measured current frequency

50Hz/60Hz (automatic identification)

display mode

3.5 color screen

Host size

207mm x 101mm x 45mm

Coil thickness

_7.5mm (very suitable for narrow environment and places with dense lines, etc.)

Quality

Main engine 280g (including batteries); flexible pliers 190g; total mass about 1.25Kg

Electric field interference

No hysteresis effect, strong anti-jamming ability

position error

The tested conductor should be located in the center of the flexible coil as far as possible, not close to the opening and closing, and the test error at the opening and closing increases by about one or more times.

Sampling rate

2 times / sec

data storage

6000 sets (no loss of data when power is off or battery is replaced)

Set time

Set recording interval within 1-60 minutes, 0 minutes for non-automatic storage

Recording time

Continuous work for about 30 hours in power-saving mode

Line voltage

AC 600V following line test

Overflow display

Overrange Overflow Function: "OL" Symbol Display

Battery voltage

When the battery voltage drops to 3.2V + 0.1V, the low symbol of the battery voltage shows that the battery is replaced, and the measured data is also accurate.

Rated current

5 mA, maximum 120 mA in power saving mode

Lead length

Standard 2 meters

Working temperature and humidity

- 10 ~40 below 80% RH

Storage temperature and humidity

- 10 ~60 below 70% RH

Insulation strength

AC 2kV/rms (between front and rear ends of main engine housing)

Suitable for safety regulations

IEC1010-1, IEC1010-2-032, pollution level 2, CAT VI (1000V) IEC61326 (EMC standard)
