The main needle of the device is 10kV cable, 35kV and below power transformer, bus switch and all other main electrical equipment AC withstand voltage test design and manufacture. The reactor is designed separately, which not only meets the requirement of high voltage and small current equipment test conditions, but also meets the requirement of low voltage AC withstand voltage test such as 10kV cable. It has a wide application range. It is an ideal withstand voltage equipment for high voltage test departments at prefecture, city and county levels, as well as for power installation and repair engineering units.

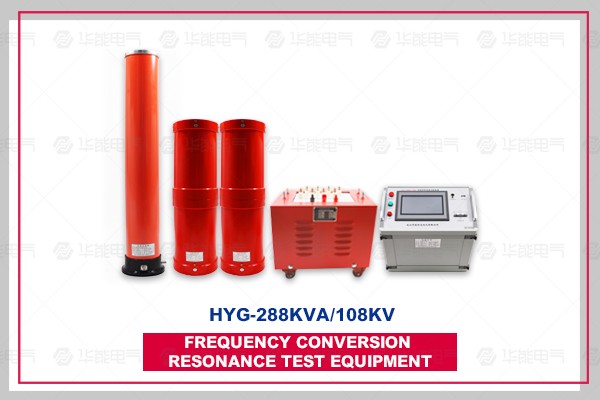

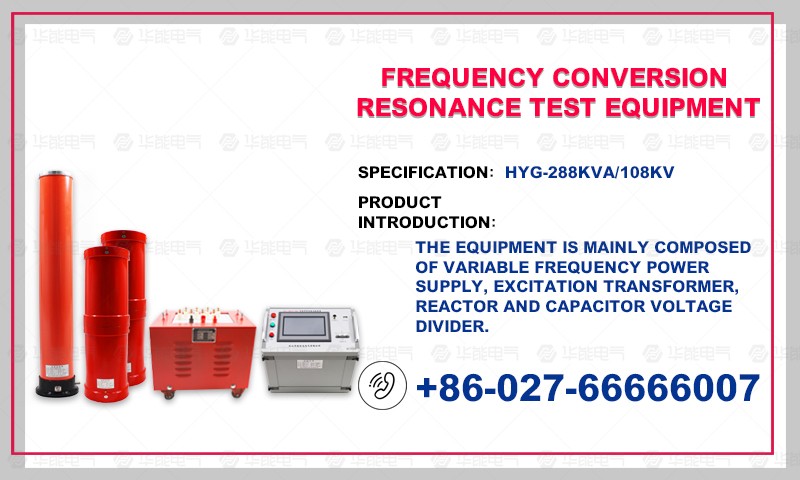

The device is mainly composed of variable frequency power supply, excitation transformer, reactor and capacitor voltage divider.

(1) HYG - Refers to the manufacturer code

288 refers to the maximum rated capacity that the equipment can output in units of kVA.

108 refers to the voltage level that the equipment can output, in units of kV.

(2) Technical specifications of HYG-288 kVA/108 kV series resonant voltage withstanding test device

1. Rated voltage:

27KV - - - Satisfies 10KV cable AC withstand voltage test;

54kV - -- Satisfies 10kV system, 35kV cable AC withstand voltage test;

108KV - AC withstand voltage test for 35KV system;

2. Output voltage waveform distortion rate: <1.0%

3. Permissible continuous working hours: 30 minutes at one time under rated conditions, 60 minutes at 35 kV cable withstanding voltage

4. Device's own quality factor: Q > 50

5. Quality factor of thermal power generator under full load during test: Q > 10 (load-related)

6. Quality factor at full load in cable test: Q > 30 (load-related)

7. Quality Factor of Main Transformer at Full Load Test: Q > 30 (Load-related)

8. Quality factor of GIS, switch and other tests at full load: Q > 50 (load-related)
