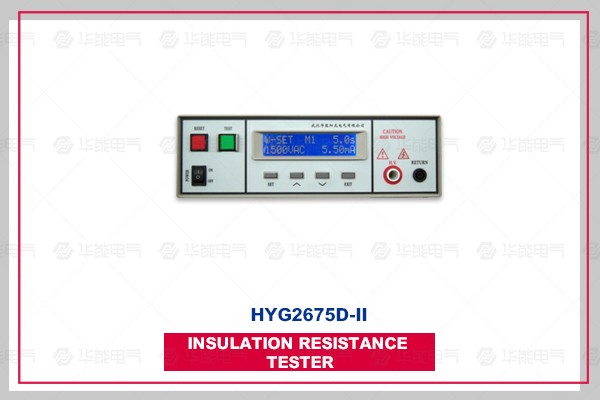

HYG2675D-II Insulation Resistance Tester is a kind of measuring instrument for measuring the insulation performance of various electronic components, dielectric materials and the whole machine. It meets the requirements of Group II in the General Outline of Environmental Experiments for Electronic Measuring Instruments, which is standard GB6587.1 of the Ministry of Electronic Industry.
Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058
HYG2675D-II Insulation Resistance Tester is a kind of measuring instrument for measuring the insulation performance of various electronic components, dielectric materials and the whole machine. It has the characteristics of fast test speed, good stability, high test precision, simple operation and convenient carrying. This instrument meets the requirements of Group II in the General Outline of Environmental Experiments for Electronic Measuring Instruments (GB6587.1), which is the standard of the Ministry of Electronic Industry.
|
HYG2675D-II |
| Test voltage | DC:250V/500V/1000V |
| Test Voltage Accuracy | ≤±5% |
| Insulation Resistance Range | 1MΩ～10000MΩ |
| Accuracy of Resistance Measurement | ±(5% measurement + 5 words) |
| time control | 3S ~ 999S; 0 = continuous output (measurement value in 1S ~ 3S is not checked) |
| Time accuracy | ≤±5% |
| Display mode | LCD liquid crystal display |
| Test Voltage Loading | 2mA |
| Instrument power consumption | 20W (excluding power supply units)
|
| Test discrimination | Acousto-optic Alarm for Qualified/Unqualified |
| communication interface | RS232 or 485 interface (optional accessories, user needs to specify when ordering; default does not have this function) |
Environmental requirements |
Relative Temperature: ≤75% RH Environment Temperature: 0℃～40℃ No strong electromagnetic interference source around; a lot of dust and corrosive gas; well ventilated |
| Weight | 3.5kg |
| Volume | 280×89×400 |
| Power Supply | 220V≤±10% 50Hz≤±2Hz |
Description of each part:
1. Switching power supply: The relay controlled by the controller releases and absorbs, producing 250V/500V/1000V DC high voltage.
2. Controller: According to the signals from resistance detector, "TEST", "RESET" and timer, it controls whether the relay is connected and whether the alarm circuit is alarmed.
3. Resistance Detector: By voltage and current flowing through the measured part, it is converted into resistance value, which is compared with setting resistance value, and then the detection signal is output to the controller.
4. Timer: Press the "TEST" button to output voltage, the timer starts to timing, after the timing time arrives, the high voltage is disconnected through the control circuit, so as to achieve the purpose of timing test.
5. Alarm: In the process of testing, when the resistance value is lower than the set resistance preset value, the controller sends out instructions, so as to promote the buzzer and unqualified judgment "red light" to light up, send out sound and light alarm, and cut off the high voltage at the same time.
