The test device is a special equipment for batch test of insulating gloves (boots). Safety tools can also be tested, such as insulating rods, insulating screwdrivers, insulating pads, etc. It is designed and manufactured by our company according to the test requirements of insulating gloves (boots) and in compliance with the opinions of users. The product effectively solves the past non-standard test, improves work efficiency and ensures work safety. It is an ideal special equipment for insulating gloves (boots).

The product uses advanced microelectronic processing technology, all the use process can be set up in advance, all Chinese interface, simple and clear operation. All test items are automatically tested after setting up, without manual intervention.

Working principle

Connecting to 0~220V power supply, according to the principle of electromagnetic induction, the transformer generates 0~30KV power frequency high voltage to the electrodes, so that the insulating gloves (boots) can obtain the prescribed test voltage. According to the test rules of insulating gloves (boots), read and record the test parameters.

Input voltage: AC220V 50Hz;

Output voltage: 0-30 kV;

Capacity: 3kVA;

Number of tests: 6 at a time;

Measuring data: It can display and print the voltage value of each subject, leakage current value;

Overcurrent protection; Overvoltage protection; Customized time, voltage, leakage current value;

LCD display, full Chinese menu operation, with printing;

Measurement accuracy: voltage (+2%(+3 words) current (+2%(+3 words);

Quality: Insulated gloves (boots) operating box 12Kg power frequency withstand voltage test bench 60kg.

Conditions of use

1. Ambient temperature: 0-40 degrees Celsius;

2. Altitude: <1000M;

3. Relative humidity: < 85%;

4. There shall be no other explosive and corrosive media in the use site which seriously affects the insulation of gases, vapors and chemical dust in Egypt.

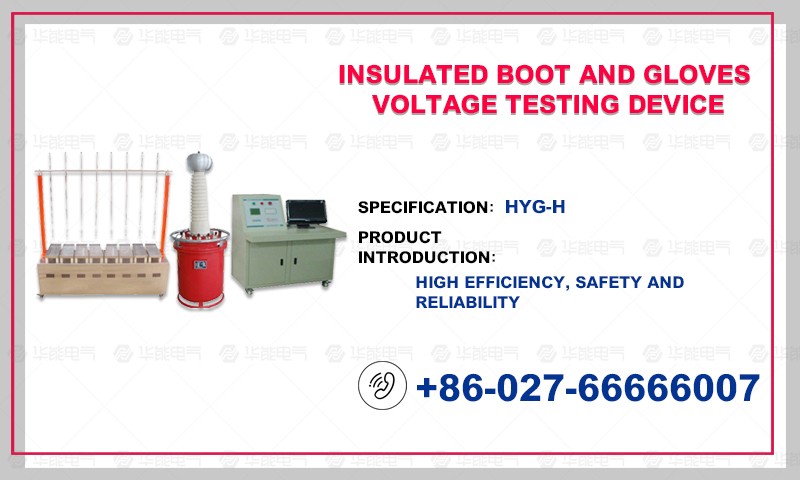

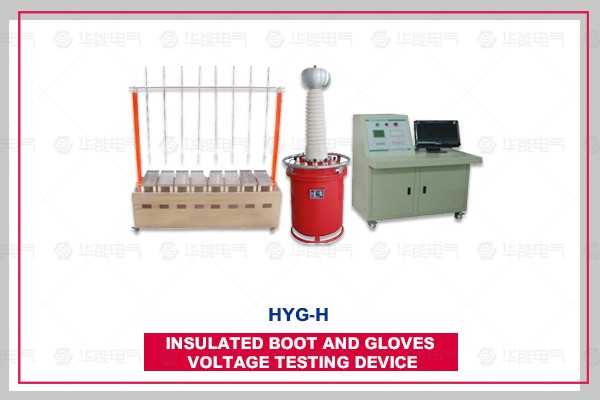

The product consists of two parts:

1. Insulation glove (boot) test vehicle, which consists of mobile bracket, water tank, electrode rod support, etc.

2. Insulating glove (boot) operating box.
