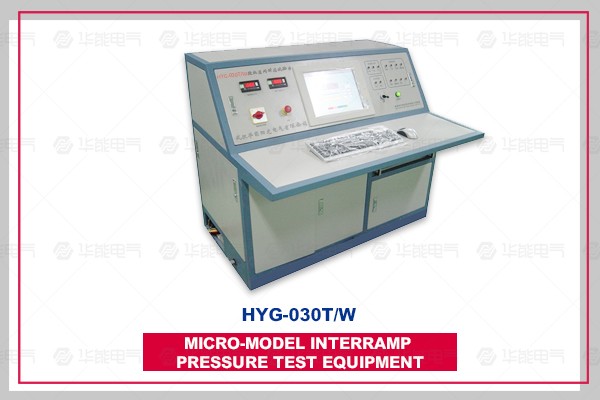

HYG-030T/W microprocessor-based inter-turn withstand voltage test rig is suitable for the inter-turn impact withstand voltage test with the maximum voltage less than 30 KV.

Power supply voltage: 220 + 5% V, 50 + 5% Hz, capacity: 3kVA;

The impulse voltage is continuously adjustable from 0.4 to 30 kV.

Wavefront time: 0.1-0.5 ugs, trigger pulse interval: 1.5 seconds, pulse trigger mode: automatic/manual.

The bottom is equipped with universal wheels, which can be moved in the production workshop.

It can distinguish whether there are interturn insulation breakdown, interturn corona discharge, winding open circuit, turn number difference, winding misconnection, insertion mistake line, ground breakdown, inter-phase short circuit and other faults.

With the latest industrial measurement and control computer and 17 inch LCD, it runs stably and quickly, and displays beautifully and generously.

It has the function of automatic grounding protection to ensure safe operation and sound and light alarm power.

It has two operation modes, manual and automatic, and adopts original trigger pulse frequency adjustable technology.

The experiment and judgment are controlled by computer to avoid human error and improve the accuracy and efficiency of the experiment.

The judgment accuracy is high. The automatic judgment accuracy of inter-turn short circuit is as high as 0.1%, and the precision setting range is 0.1%-20%.

Corona comparison, phase comparison, area comparison and difference product comparison are used to analyze automatically by software.

It has network interface, print interface, USB interface, serial port and so on
