This series of control boxes are designed and produced based on the unique range of use of high-pressure test Transformers. Their functions include:

A, closed sound and light alarm;

B, timing sound and light alarm;

C, electronic low-voltage current protection(box type);

D, high voltage direct reading;

E, pressure test time is set freely(several signs);

F, mobile structure(desktop).

The capacity of the control box is nominal with the capacity of the regulator. If it is accompanied by a test Transformer(working system within a short time of 30 min), it can be based on the provisions of the People's Republic of China Power Industry Standard "DL474.4-92": P0 = 0.75 P selection. P0-test Transformer capacity; P-regulator capacity. If used for batch testing of electrical professional factory products, the regulator capacity should be equal to the test Transformer capacity, ie: P0 = P.

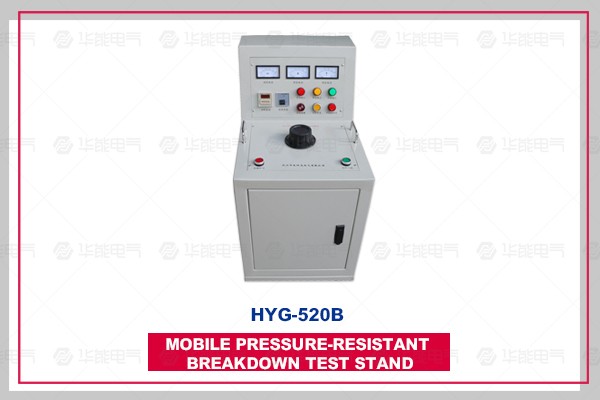

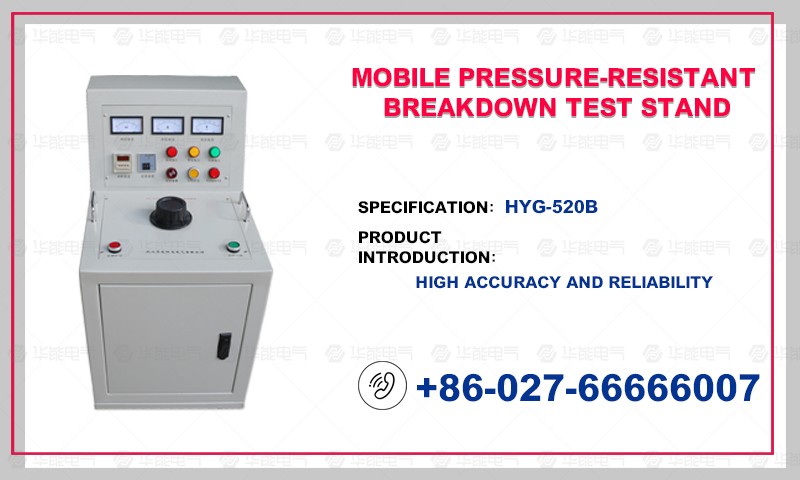

1, mobile pressure resistant breakdown test bench technical parameters

1) Capacity: 3KVA

2) High voltage output: DC 5000V/AC3800V

3) regulator 3KVA/250V

4) Power supply: AC 220V ± 10 % 50Hz ± 5 %

5) AC-DC high voltage pointer table 5KV; Low pressure table: 250V; High voltage ammeter: 1A

6) Environmental requirements: Relative humidity: ≤ 75 % RH ambient temperature: 0 °C ~ 40 °C There is no strong electromagnetic field interference source around; Free of large quantities of dust and corrosive gases; Good ventilation.
