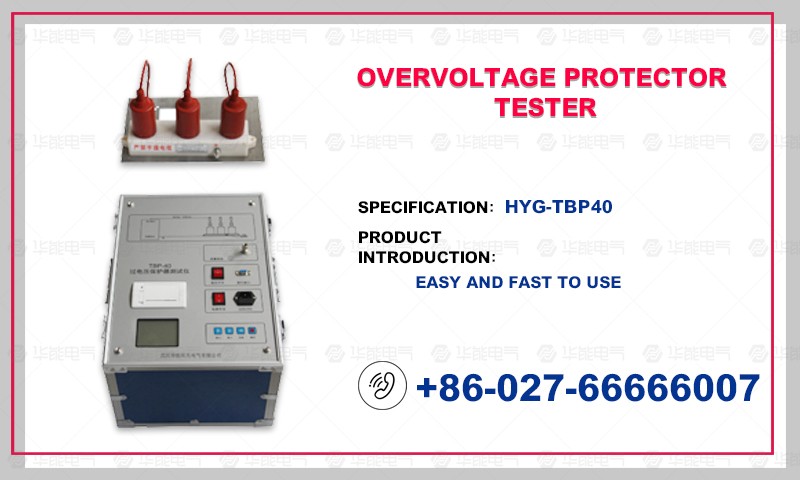

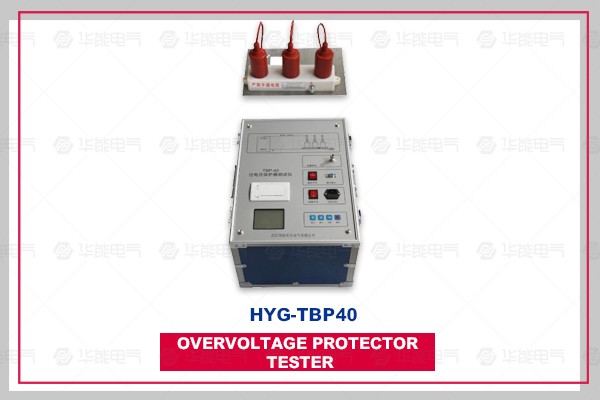

HYG-TBP40 over-voltage protector tester is widely used to test power frequency discharge voltage of various electrical equipment, especially for zinc oxide over-voltage protector with gap (also known as lightning arrester or TBP). The tester uses a new special circuit to monitor the test voltage waveform, collects the discharge pulse signal of current circuit, automatically judges the gap discharge, locks the peak value of the instantaneous voltage, and sends out sound alarm signal to prompt the tester, and quickly cuts off the test power supply to protect the test product and test equipment from over-current damage. The tester integrates power supply, measurement and control system of power frequency and high voltage. It is concentrated in an aluminium alloy box. It is small in size, light in weight, shock-proof and fall-proof, simple in operation and easy to carry.

1. Output Voltage 0-30 kV Output Current 0-25 mA

2. Detection and Discharge Mode: Waveform Detection and Fourier Transform Method

3. Accuracy: Voltage: + (Reading *2%+0.1) Current: + (Reading *2%+0.1)

4. High-pressure cut-off time: less than 0.2 seconds

5. Input power supply: 180V-270VAC, 50Hz/60Hz+1%, municipal or generator power supply

6. Computer Interface: Standard RS232 Interface

7. Printer: Weihuang A7 Thermal Microprinter

8. Ambient temperature: - 10 ~50 C relative humidity: <90%

1. The instrument monitors the discharge current by waveform detection and Fourier transform. When the discharge current is monitored, the current high voltage is recorded immediately and the high voltage power supply is cut off within 0.2s. The test result has high precision and is easy to realize automatic measurement.

2. The instrument adopts LCD with large screen, and the test process is intuitive and easy to operate through Chinese menu prompt.

3. The instrument is easy to operate and the measurement of data is automatically completed under the control of microprocessor. No manual intervention is required.

4. Integrative model, with high voltage power supply, which is convenient for field test and reduces field wiring.

5. High-voltage protection: short circuit, breakdown or high-voltage current fluctuation of the sample can cut off the output at high speed by short circuit.

6. Low Voltage Protection: Misconnected 380V, power fluctuation or sudden power failure, start protection, will not cause overvoltage.

7. Anti-misoperation: two-stage power switch; real-time monitoring of voltage and current; high/low voltage distinct terminal; slow step-up, rapid voltage reduction, sound alarm.

8. Seismic performance: The instrument adopts unique seismic design, which can withstand strong long-distance transportation vibration and turbulence without damage.

9. High-voltage cable: high-voltage insulated conductor, towable use.
