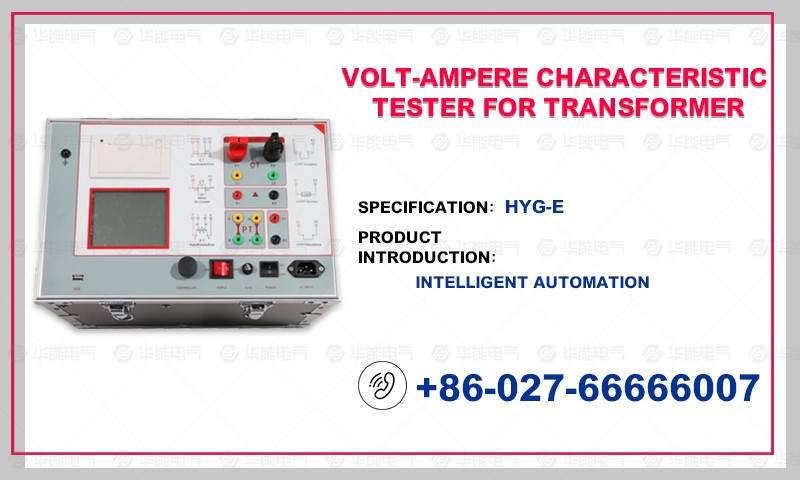

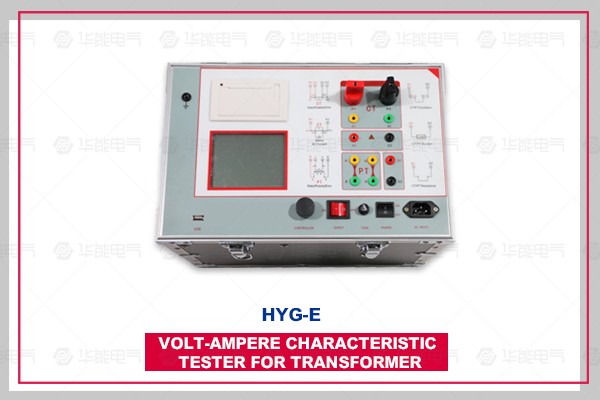

Designed for automatic testing of protection and Metrology CT/PT, it is also suitable for on-site testing.

Reference standards: GB 1207-2006, GB 1208-2006.

HYG-B Transformer voltammetry tester corresponding specifications: 1000V/600A, 2500V/600A, 1000V/1000A, 2500V/1000A.

Working power supply:AC220V ± 10 %, 50Hz

Device output:0 to 1000V(0-20A)

Output Current:0 to 600A(0-5V)

Secondary winding resistance measurement

range:0.1 to 300 Ω

precision:0.5 % ± 1mΩ

Secondary actual load measurement

range:5 ~ 300VA

precision:≤ 0.5 %

CT / PT angular difference measurement

precision:± 4 min

resolution ratio:0.1 min

CT / PT differential measurement

precision:≤ 0.05 %

resolution ratio:0.1

CT Variation Ratio Measurement

range:5-25000 A/5A(5000 A/1A)

precision:≤ 0.5 %

PT Variation Ratio Measurement

range:1-10000

precision:≤ 0.5 %

work environment

Temperature: -10 °C ~ 40 °C, humidity: ≤ 90 %, altitude: ≤ 1000M

size:380mm × 240mm × 260mm

weight:≤ 22Kg

Working conditions requirements

Input voltage 220Vac ± 10 %, rated frequency 50Hz;

The tester should be powered by a power outlet with a protective grounding. If there is a problem with the connection of the protected area, or if the power supply does not have an isolated connection to the ground, the tester can still be used, but we do not guarantee security;

The ambient temperature corresponding to the parameter is 23 °C ± 5 °C;

The guarantee  is  one year after the factory check.

CT and PT detection supportation

Meet the requirements of GB 1207, GB 1208, etc..

All test items can be completed by single machine without additional auxiliary equipment.

With micro-fast printer, can print test results directly on site.

Using intelligent controller, the operation is simple.

Large screen LCD, graphical display interface.

CT / PT(excitation) inflection point values are automatically given according to procedure.

Automatic error curves of 5 % and 10 % are given.

It can save 3000 test data and lose power without losing it.

Supports USB disk transfer data, can be read through the standard PC, and generate detection reports.

Compact and lightweight ≤ 22Kg, very good for field testing.

The main test function of the tester is:

CT(Protection, Measurement)

Volt-ampere characteristic(excitation characteristic) curve

Automatically give inflection point value

Automatically give 5 % and 10 % error curves

Variable ratio measurement

Ratio measurement

Angle difference measurement

Polarity judgment

One flow test.

AC Pressure Testing

Secondary load testing

Secondary winding test

Automatic demagnetization of iron cores

PT

Volt-ampere characteristic(excitation characteristic) curve

Automatically give inflection point value

Variable ratio measurement

Polarity judgment

Ratio measurement

Angle difference measurement

AC Pressure Testing

Secondary load testing

Secondary winding test

Automatic demagnetization of iron cores
