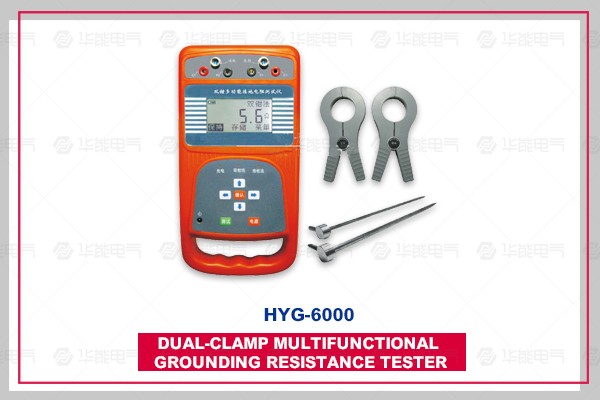

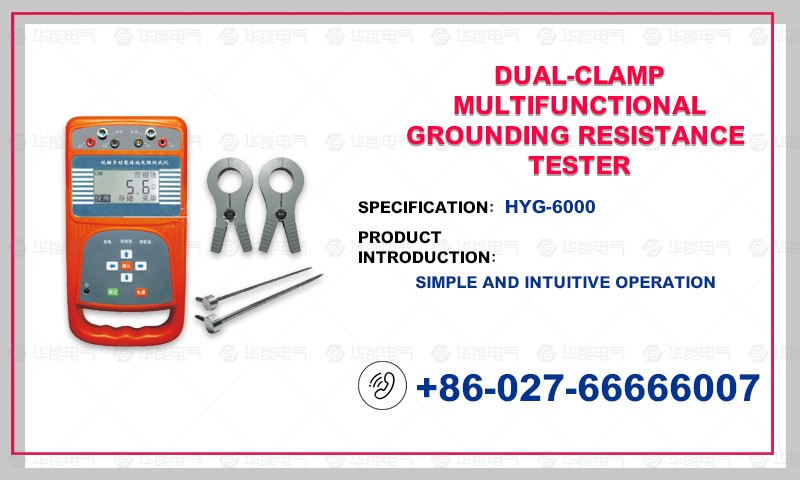

HYG6000 multi-function grounding resistance tester is a hand-held grounding tester. The instrument is equipped with accessories necessary for testing. The operation is simple and intuitive. The operator only needs to read the instructions without attending special training.

Excellent grounding system is an important guarantee for safe and reliable operation of electric power, telecommunications and electrical equipment. The grounding resistance is the basis for evaluating the quality of grounding system. Accurate, fast, simple and reliable grounding resistance measurement method has become an urgent need for technical progress in the field of lightning protection grounding. HYG6000 multi-function grounding resistance tester is suitable for telecommunications, power, meteorology, computer room, power distribution line, tower transmission line, gas station, factory grounding grid, lightning rod, etc.

In addition to the traditional function of assisting the earth pole to measure the grounding resistance, the instrument also has the unique function of measuring the grounding resistance without assisting the earth pole. It has changed the traditional measuring principle and means of measuring the grounding resistance: the double-clamp non-contact measuring technology does not need assisting the earth pole, nor does it need to isolate the grounding body from the load, thus realizing the on-line measurement. Under the condition of single-point grounding system and strong disturbance, it can be measured by auxiliary polar measurement.

1. Measurement range of grounding resistance:

Double clamp method: 0.01_~1000_

Ground Pile Method: 0.01_~1000_

2. error:

Two-clamp method: +2%+2 words

Ground pile method: +1.5%+2 words

3. Minimum Resolution: 0.01_

4. Clamp size: 50mm

5. Storage capacity: 200 sets of data

6. Working temperature: 0 C ~ + 50 degrees C

7. Power supply: 8 nickel-hydrogen rechargeable batteries or ordinary AA batteries

8. Weight: 0.8KG (including batteries)

9. Dimensions: 265 mm x 130 mm x 65 mm

1. Double-clamp method/ground pile method:

Suitable for any grounding site, multi-point or single-point grounding, can be normal test;

2. Strong anti-interference ability:

The high frequency current is generated by itself, which filters the harmonic interference currents such as 50Hz and 100Hz in the municipal electricity. Even in the environment of 500KV substation, it can be measured accurately.

3. Wide measurement range and high resolution:

The range is from 0.01_to 1000_, and the resolution is 0.01_. The grounding resistance below 0.7_can also be measured accurately.

4. Design of large tongs:

The caliper diameter is 50mm (standard configuration), which meets the requirement of using flat iron/steel as grounding lead. The special caliper size can be customized according to customer's requirements.

5. Large capacity data storage:

It can store 200 sets of measurement data.

6. Simple operation, single operation:

Full Chinese operation interface, small size, light weight, explosion-proof portable case, easy to carry field measurements.
