Reliable and effective connection between grounding lead and ground network of power equipment is the fundamental guarantee for safe operation of equipment. Grounding lead is the connection between power equipment and ground network. During the long-term operation of power equipment, the connection may be affected by dampness and other factors, resulting in node corrosion, or even breakage, which leads to the increase of resistance of the connection point between grounding lead and main ground network, thus failing to meet the requirements of power regulations, making the equipment unsafe in operation, and in serious cases. It will cause the equipment to lose ground.

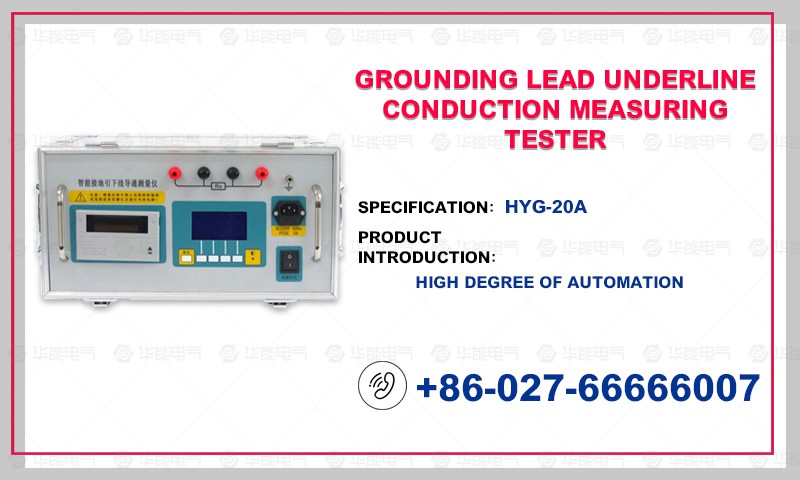

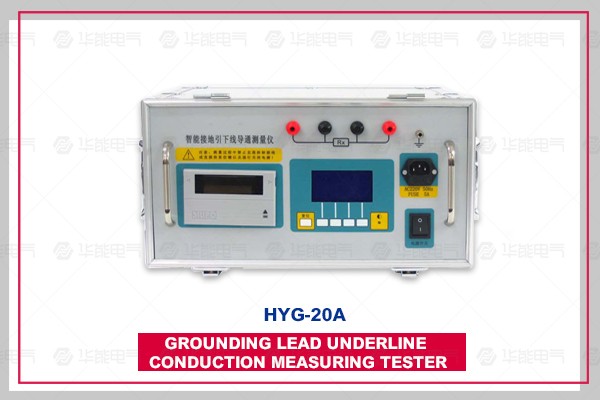

This tester is a highly automated portable tester developed by our company. It is specially used to measure DC resistance of portable short-circuit grounding wire and personal protection grounding wire.

project

Technical Indicators and Parameters

Remarks

Test current

10A 20A

measuring range

20A 1m_~1

10A 1m_~2

Measurement Accuracy

(0.2% full range + 2 words)

Display mode

128 x 64 lattice display

Resistance display is 41/2 bits

Maximum resolution

0.1 ohm

Power Supply

AC 220V + 22V, 50Hz + 2Hz

Insurance management 5A

Maximum power consumption

400W

Test current 20A

work environment

Ambient temperature: 0 ~40.

Relative humidity: <80%

volume

400 210 480 (mm)

weight

15kg
