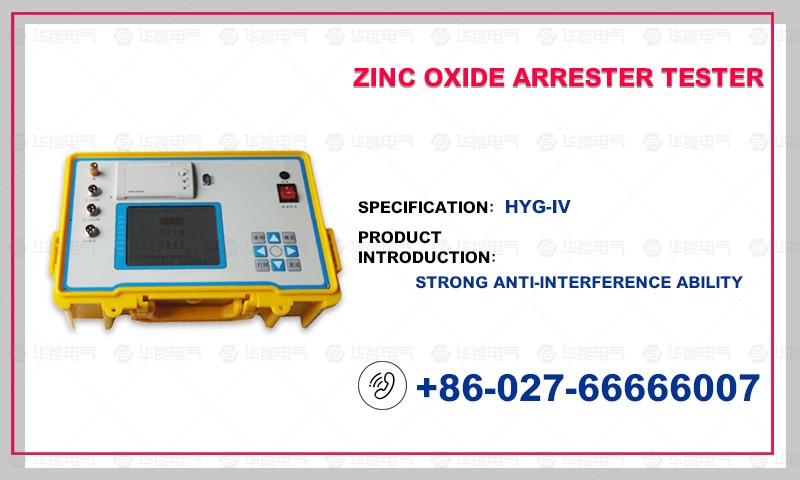

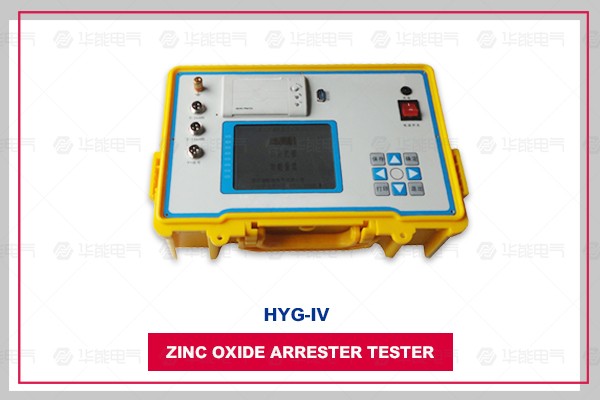

HYG-IV Zinc Oxide Arrester Live Tester is a special instrument for testing the electrical performance of Zinc Oxide Arrester. It is suitable for live or outage detection of Zinc Oxide Arrester of various voltage levels, so as to find out the dangerous defects such as damp insulation and aging of valve plates in time.

The instrument is simple to operate and easy to use. The whole measuring process is controlled by a computer. It can measure the full current, resistive current and its harmonics, power frequency reference voltage and its harmonics, active power and phase difference of zinc oxide arrester. The real waveform of voltage and current can be displayed on a large screen. The instrument uses digital waveform analysis technology and software anti-interference methods such as harmonic analysis and digital filtering to make the measurement results accurate and stable. It can accurately analyze the content of fundamental and third to seventh harmonics, overcome the influence of inter-phase interference, and correctly measure the resistive current of side-phase arrester.

Operating power supply: AC220V/50Hz; If high-energy lithium-ion batteries are selected, internal batteries are supplied, charging time is > 3 hours, continuous working time is > 8 hours.

Measurement range:

Leakage current: 0-10mA (scalable);

Voltage: 30-100V (scalable).

Measurement accuracy:

Current: Full current > 100 mu A, +5% reading +1 word

Voltage: When the reference voltage signal is more than 30V, +2% reading +1 word;

Measuring parameters:

Full current waveform, fundamental RMS and peak value of leakage current.

Fundamental RMS of leakage current resistive component and RMS of 3, 5 and 7 times.

Leakage current resistance component peak value: positive peak Ir + negative peak Ir-.

Capacitive current fundamental wave, full voltage, full current phase angle difference.

Voltage RMS.

Arrester power consumption.

Voltage reference signal sampling mode: 20 m (scalable)

Instrument Dimension: Host 360mm x 260mm x 140 mm

Instrument weight: host 5.0kg

Instrument  configuration without high-energy lithium-ion batteries, optional built-in.

5.7 inch 320 *240 LCD, high-speed thermal printer; graphics and text display, intuitive interface, easy for field personnel to operate and use.

Applicable to live arrester, blackout or laboratory and other places.

Current and voltage sensors are completely isolated, safe and reliable. Really achieve three-phase current and three-phase voltage measurements at the same time, improve work efficiency;

The instrument can test continuously, display voltage and current curves, and print data and curves quickly.

Internal memory can be configured to store 200 sets of test data when power is switched off.

RS232 communication interface is selected, and the test data can be derived through the upper computer.

Anti-interference calculation can be carried out to compensate the deviation of phase A and C currents from phase B.

High-speed sampling frequency, advanced digital signal processing technology, strong anti-interference performance, high accuracy of measurement results.

Optional configuration with high-energy lithium-ion batteries, especially suitable for power-free occasions. The instrument is only equipped with weak current, and the voltage does not exceed 12V. The charging state can also work.

It adopts dustproof, waterproof and anticorrosive engineering plastic sealed box, which is small in size, light in weight and easy to carry.
