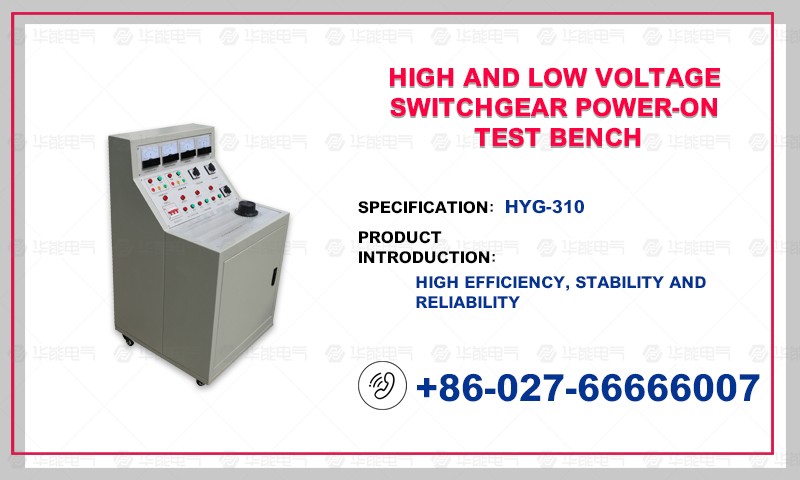

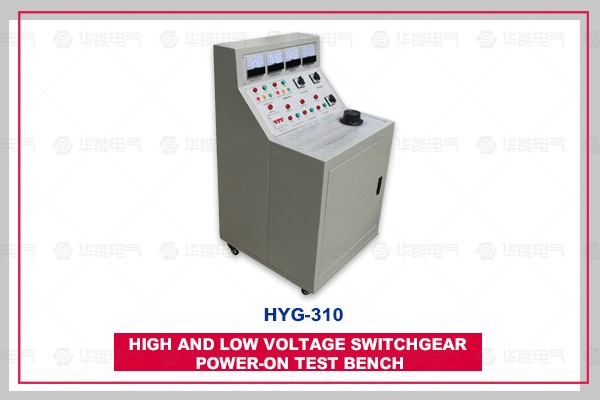

HYG-310 high and low voltage switch cabinet power-on test stand is used for high and low voltage switch cabinet manufacturers to carry out various power-on tests of high and low voltage switch cabinets before they leave the factory. It can provide a variety of AC and DC power supply, facilitate the detection of switchgear, improve work efficiency.
Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058
1. Input power supply: three-phase four-wire AC 380V
2. Output voltage and current:
3. Three-phase AC 0-10A output ("100V, adjustable value") group
4. Three-phase AC100V output (fixed value) set
5. AC operating voltage output AC 0-430V, 220V, current less than 10 A
6. DC Operating Voltage Output DC 0~260V
7. Single-phase 24V, 36V, 110V, 220V DC fixed output
8. Two sets of single-phase AC220V output (fixed value, socket form)
9. Three-phase AC380V output (fixed value, terminal) set
10. Shape size: 560 x 520 x 850 mm
11. Weight: 45kg
1. The 10A and 16A air switches are connected in series in front of the output terminal as short circuit protection. According to the special requirements of users, 3 - 4 parameters can be switched on and off at the same time without interlocking. Please pay attention to the requirements in use.
It's better to have only one set of power output at a time.
2. 7.8.9 items of technical parameters are not controlled by contactors. As long as the main power switch is closed, single-phase DC24V, 36V, 110V, 220V output (fixed value), single-phase AC220V output (fixed value) and three-phase AC380V output (fixed value) can be output.
3. DC power supply output DC 0-300V (large capacity) is an independent unit, which can be separated from the main cabinet and used alone. It can also be combined with the main cabinet and output directly from the rear panel DC 300V output terminal.
4. Three-phase switch K1 and three-phase AC380V voltmeter.
