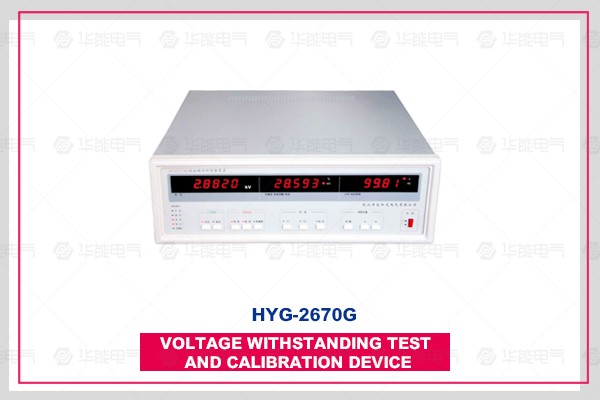

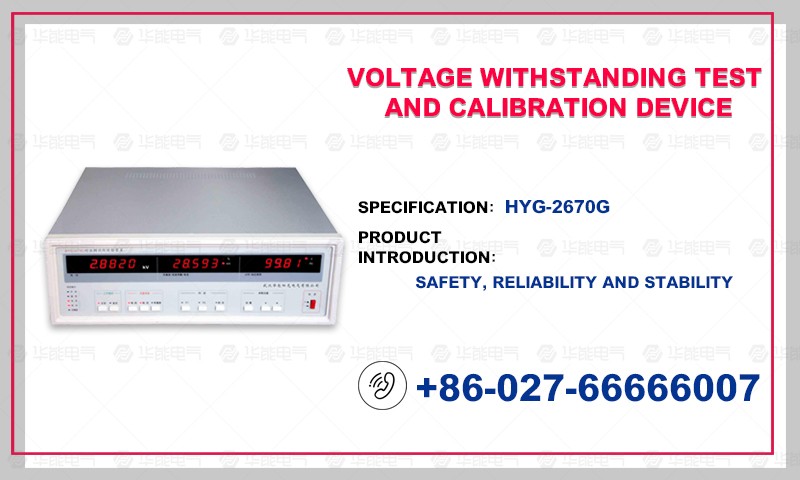

The calibrator of withstand voltage tester (hereinafter referred to as HYG2670G calibrator or calibrator) is positioned at 0.5% accuracy, and can calibrate the calibration device of withstand voltage tester with the highest accuracy level of 2. It is suitable for withstand voltage tester with maximum output voltage of 15 kV, including digital and pointer AC power frequency, DC withstand voltage tester, withstand voltage part of safety performance comprehensive tester and withstand voltage part of insulation withstand voltage tester. It is an automatic calibrator for first verification, subsequent verification and use verification. It can also be used as a standard high voltage meter for precise measurement of 0.1kV-15kV AC/DC voltage or as an ammeter alone. The calibrator can automatically measure the effective value of AC and DC output voltage, the holding time of output voltage, the distortion of AC output voltage, the ripple coefficient of DC output voltage. It can measure the effective value of AC and DC breakdown alarm current with resistance box (optional accessories) and the voltage drop measurement method under half load to realize capacity test.

The above measurement parameters meet the requirements of JJG795-2004 "Verification Regulations for Voltage Withstand Testers".

1. Measurement accuracy:

AC and DC Voltage

Total measurement range

0.1000~15.000 (kV)

Accuracy

AC 0.5%*reading+0.25%*fullness

DC 0.2%*reading+0.05%*fullness

Maximum input voltage

16kV

Voltage Resolution

0.0001kV

AC and DC Current

Total measurement range

0.100-240.0 (mA)

Accuracy

AC 0.2%*reading+0.1%*fullness

DC 0.2%*Read+0.02%*Full Degree

Leakage current measurement

0.01-240.0 (mA)

AC Voltage Distortion

Voltage input range

1.000kV ~ 15.00kV

Frequency measurement range

The 50 harmonic

Range

0.50%-10.00%

Accuracy

Better than 1%

DC voltage ripple coefficient

Voltage input range

1.000 kV to 15.00 kV

Measuring norm

0.50%-10.00%

Accuracy

Better than 1%

Voltage retention time

measuring range

1.00s ~ 999.99s

Accuracy

0.5%+2 words (0.2% over 10s)

Resolving power

0.01s

2. Other parameters:

Input mode: The current is floating input, and the voltage measuring circuit is isolated from the current measuring circuit.

The power consumption of the whole machine is < 10VA, and the weight of the instrument is about 6.5kg.

Instrument size: width * height * depth: 400 * 130 * 380 mm

3. Working environment:

Atmospheric pressure: (86-106) kPa; Temperature: (10-38)degrees Celsius; Relative humidity: <85% RH

Instrument power supply: AC220V 50/60Hz
