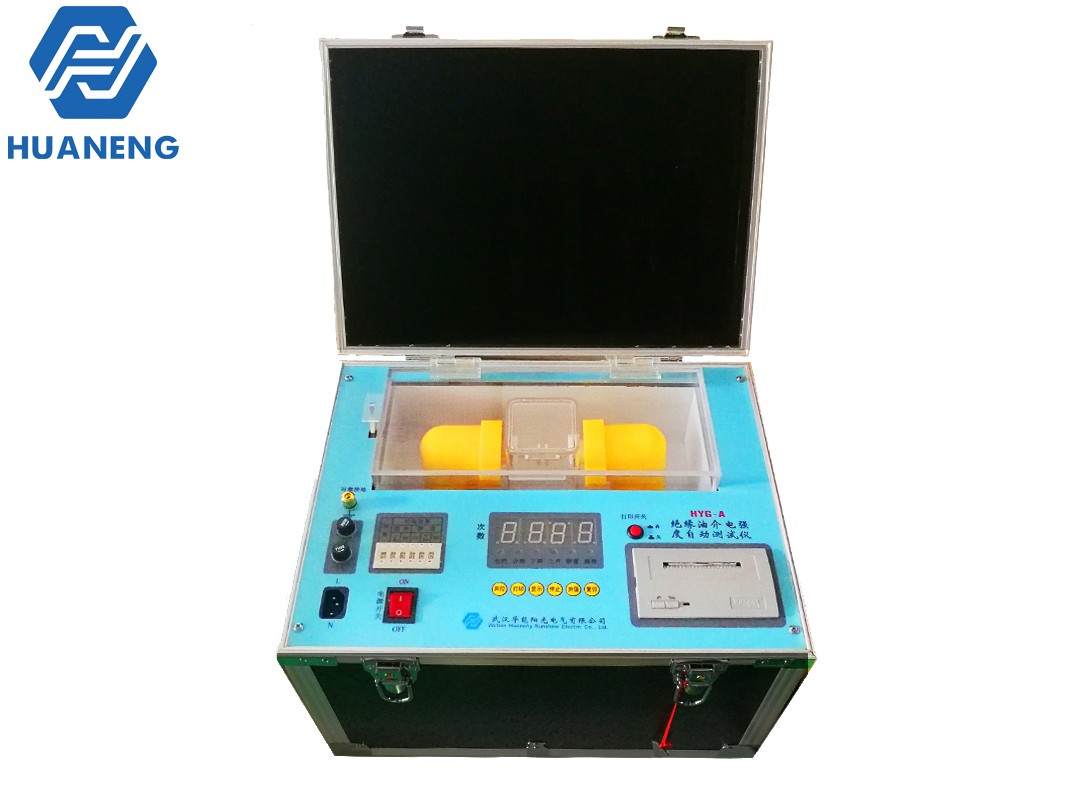

The HYG-A oil insulation dielectric strength automatic tester is a fully automated instrument developed in accordance with the requirements of the International IEC-156 and International GB507-2002 "Insulation dielectric strength measurement method" and combined with feedback from users.

This instrument chooses the single chip  as the leading, first sets the method of the test after the boot, all the process by the microcomputer automatic operation control, the operation is simple, the convenience applies.

9. Volume: 415 × 315 × 315mm 3

10. Weight: 30kg

This tester is suitable for testing the dielectric strength of various insulating oils. Its main performance characteristics:

1. This instrument is equipped with an automatic detection function, such as the boot automatically enters the reset state to perform the regulator zero.

2. The micro-TPU-A panel printer is used to automatically print the output.

3. According to the user's needs, the number of tests, stirring, static time, and voice-controlled photo-control reminders can be changed for continuous printing and non-printing.

4. This instrument uses full automatic magnetic oscillator stirring to eliminate the uneven oil sample and bubbles.
