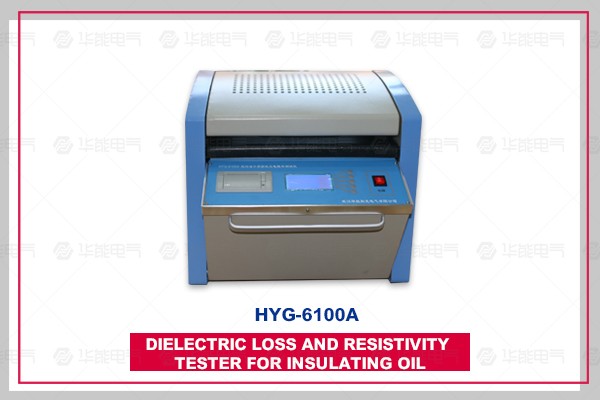

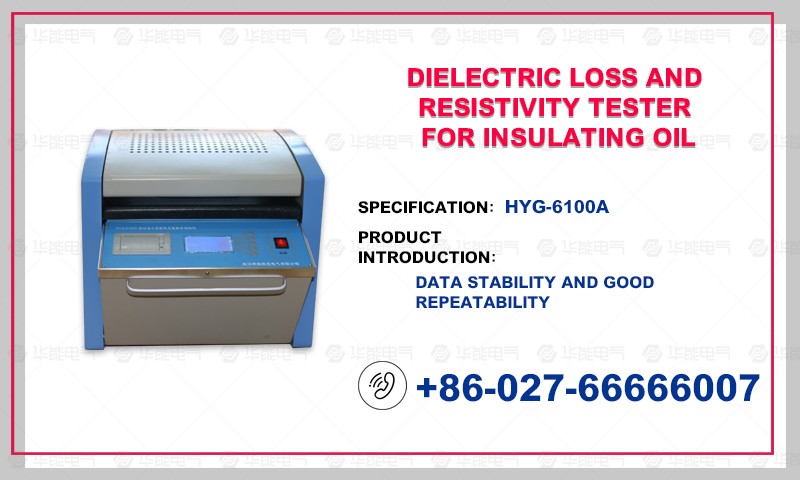

The Insulation Oil Dissipation Factor and Resistivity Measuring System type HYG-6100A is based on the national standard GB/T5654-2007,《Liquid insulating material of relative permittivity, dielectric loss factor and DC resistivity measurements》and mainly used for measuring the dielectric loss factor and DC resistivity of liquid medium, such as insulation oil. Etc. The instrument is characterized by integrated structure, and integrates the dielectric loss of test cell, temperature controller, temperature sensor, dielectric loss test bridge ,AC test power, standard capacitor, high resistance meter, DC high voltage source and other major components. The product, by using a single-chip microcomputer as the core, can operate in full automation with high accuracy, greatly improving work efficiency and reducing the labor intensity of workers.

Voltage supply：AC220V±10%

Power frequency：50Hz/60Hz ±1%

Measuring range：

Electric capacity  5pF～200Pf

Relative permittivity  1.000～30.000

Dielectric loss factor  0.00001～100

Resistivity  2.5 MΩm～20 TΩm

Measuring accuracy：

Electric capacity ± (1% of measuring value+0.5pF)

Relative permittivity ±1% of measuring value

Dielectric dissipation factor ± (1% of measuring value+0.0001)

Resistivity ±10% of measuring value

Resolution：

Electric capacity 0.01pF

Relative permittivity 0.001

Dielectric dissipation factor 0.00001

Test temperature：0～125℃

Error of measurement：±0.5℃

Test Voltage AC(RMS)：500～2200V

Continuously adjustable, frequency 50HZ

Test Voltage DC：0～500V Continuously adjustable

Power：100W

Overall dimension：500×360×420

Total weight：22Kg

（1）The test cell used three-electrode-type structure in accordance with the national standard of GB/T5654-2007, with electrode gap 2mm, can eliminate the effect of stray capacitance and reducing leakage on the dielectric loss test results.

（2）Instruments used medium frequency induction heating, PID temperature control algorithm. The heating method can make the test cell and heated without contact, and uniform heating, fast, convenient control, and make the temperature strictly controlled within the preset temperature range.

（3）Internal capacitor is SF6 gas-filled three-electrode capacitance, its dielectric loss and capacitance is not affected by the ambient temperature and humidity. It can make the instrument accuracy be guaranteed after prolonged use.

（4）AC test power supply using AC-DC-AC conversion, effectively avoid the fluctuations in mains voltage and frequency on dielectric loss measurement accuracy effect. Even a generator, the instrument can work properly.

（5）Perfect protection function; When there is over voltage、over current or high-voltage short circuit, instruments can quickly cut off pressure, and issues a warning message.When the temperature of the sensor failure or not connected, the instrument will also issue a warning message.There is a temperature limiting relay in the medium frequency induction heating furnace. When temperature above 120 degrees, the instrument frees the relay and stops heating.

（6）More convenient the experimental parameter is set. Temperature setting range 0～125℃, AC voltage setting range 500～2200V, DC voltage setting range 0～500V.

（7）Large LCD display with backlight and clear display, Friendly human-machine interface, simply follow the Chinese characters menu prompt, enter the command, the instrument can be automatically tested, and automatically store and print test results.

（8）The instrument comes with real time clock, the test date and time can be saved、displayed and printed with the test results.

（9）Test cell calibration. We can judge the test cell’s cleaning and assembly by measuring electrode capacitance and dielectric loss factor of the test cell. The calibration data is automatically stored, in order to accurately calculate the relative permittivity and the DC resistivity.
