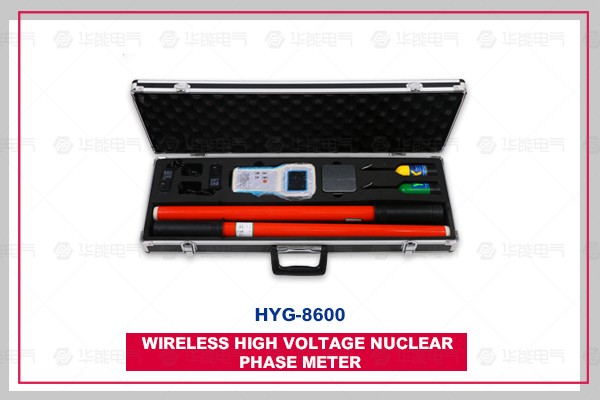

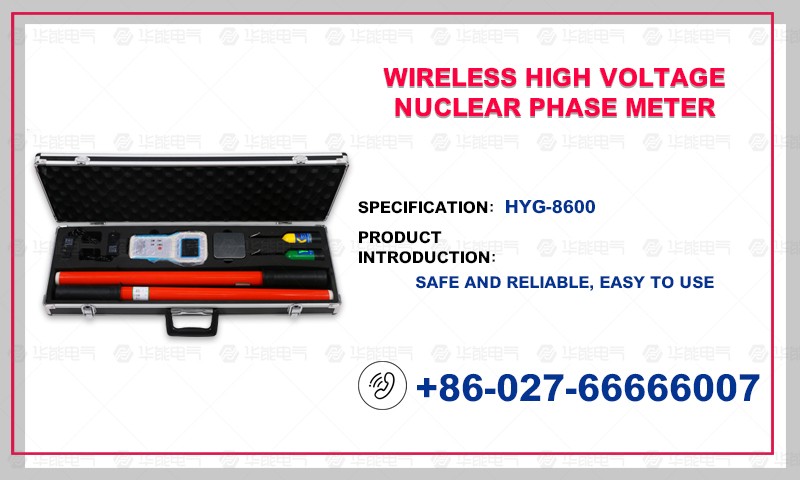

HYG-8600 Wireless High Voltage Nuclear Phase Meter

HYG-8600 Wireless High Voltage Nuclear Phase Meter is used to check the phase of two high voltage lines connected to the grid or ring network. And it can upgrade the function of remote phase. The instrument is suitable for live operation of 220V-220KV AC transmission line and secondary side live operation, and has high voltage electricity test function.

Product Manuals National Standard Product report

Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058

Product Introduction
Product Portfolio
Product video

Product Introduction

TAG-8600 Wireless High Voltage Nuclear Phase Meter (hereinafter referred to as "instrument") is used to check the phase of two high voltage lines connected to the grid or ring network. And it can upgrade the function of remote phase. The instrument is suitable for live operation of 220V-220KV AC transmission line and secondary side live operation, and has high voltage electricity test function.

The instrument adopts wireless transmission technology, which is safe and reliable to operate and easy to use. It overcomes many shortcomings of wired phase detector.
Product parameters

1. Accuracy of phase difference: the error is less than 5 degrees.

2. Frequency accuracy: +0.1HZ.

3. The cross-voltage measurement range is 220V-220KV.

4. The maximum transmission horizon of transmitter and receiver is about 100 meters.

5. Measurement results and operation steps of human voice prompt.

6. The screen (2.8-inch LCD color screen) displays the phase difference, frequency, loss plot and dissimilar results of two lines at the same time.

8. Automatic shutdown without operation for 30 minutes.

9. Both transmitter and receiver have built-in rechargeable lithium batteries, and the batteries can be disassembled and replaced.

10. The main battery capacity is 2500 mAH and the launcher battery capacity is 450 mAH.

11. Leakage current < 10uA in high voltage measurement.

12. The power consumption of transmitter is less than 0.1W and that of receiving host is less than 0.3W.

13. Working environment: - 35 ~45 ~95% RH.

14. Storage environment: - 40 ~55 ~95% RH.

15. Whole machine weight: about 5KG.

16. Instrument packing size: 71 cm long, 26 cm wide and 11 cm high.
Product features

The instrument consists of two transmitters and one receiving host. The transmitter can judge whether the line is live or not, and measure the phase and frequency of the line. Each transmitter transmits the measured data to the receiving host by radio. The receiving host calculates the phase difference between the two lines based on the transmitter data and judges the similarities and differences.
