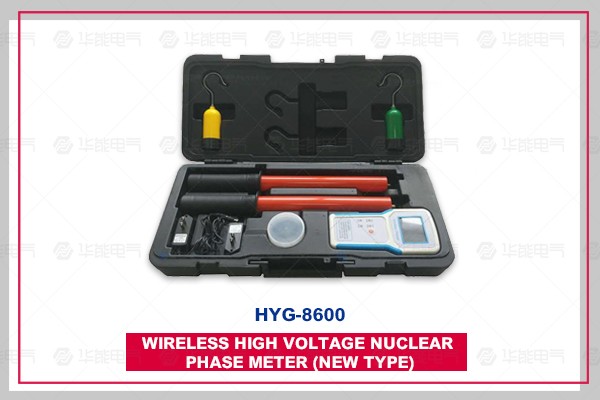

HYG-8600 Wireless High Voltage Nuclear Phase Meter (hereinafter referred to as "instrument") is used to check the phase of two high voltage lines connected to the grid or ring network. The instrument can upgrade the function of remote nuclear phase. The instrument is suitable for live operation of 0.22KV-220KV AC transmission line and secondary side live operation, and has high voltage electricity test function.

The instrument adopts wireless transmission technology, which is safe and reliable to operate and easy to use. It overcomes many shortcomings of wired phase detector.
Product parameters

1. Accuracy of phase difference: the error is less than 5 degrees.

2. Frequency accuracy: +0.1HZ.

3. The cross-voltage measurement range is 0.22KV-220KV.

4. The maximum transmission horizon of transmitter and receiver is about 100 meters.

5. Measurement results and operation steps of human voice prompt.

6. 320 x 240 color screen displays phase difference, frequency, loss plot and dissimilar results at the same time.

8. Automatically shut down for 1 hour without operation.

9. Both transmitter and receiver have built-in rechargeable lithium batteries, and the batteries can be disassembled and replaced.

10. The main lithium battery capacity is about 2500 mAH and the launcher lithium battery capacity is about 350 mAH.

11. Leakage current < 10uA in high voltage measurement.

12. The power consumption of transmitter is less than 0.1W and that of receiving host is less than 0.3W.

13. Working environment: - 35 ~45 ~95% RH.

14. Storage environment: - 40 ~55 ~95% RH.

15. Whole machine weight: about 3.6KG.

16. Instrument packing size: 56 cm long, 26 cm wide and 13 cm high.
Product features

The instrument consists of two transmitters and one receiving host. The transmitter can judge whether the line is live or not, and measure the phase and frequency of the line. Each transmitter transmits the measured data to the receiving host by radio. The receiving host calculates the phase difference between the two lines based on the transmitter data and judges the similarities and differences.
