Test transformer is the necessary test equipment for testing and preventive testing of power equipment. With the development of China's electric power industry, the voltage level requirements of test transformers are becoming higher and higher, while the traditional oil-immersed test transformers are increasingly unable to meet the requirements of field work in terms of volume, weight and performance.

With the progress of basic scientific research and the application of new materials and processes in China, the new medium sulfur hexafluoride gas has been pushed into the application field of power equipment. Sulfur hexafluoride is widely used as a new insulating medium because of its excellent insulation, arc extinguishing and non-flammability.

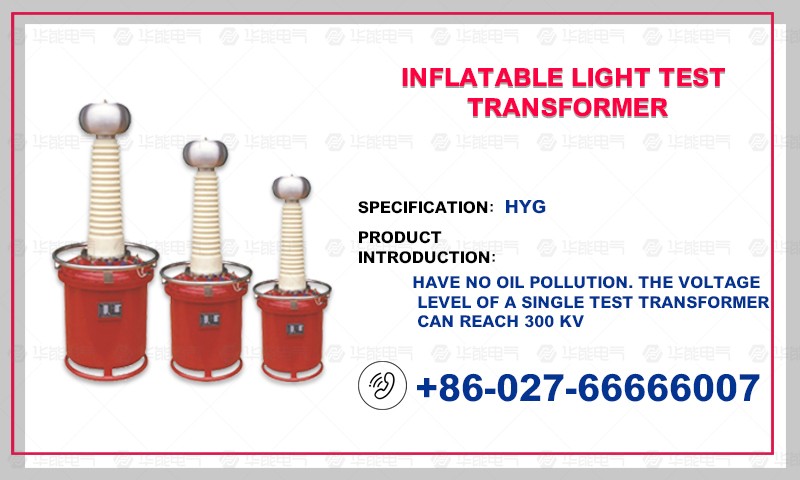

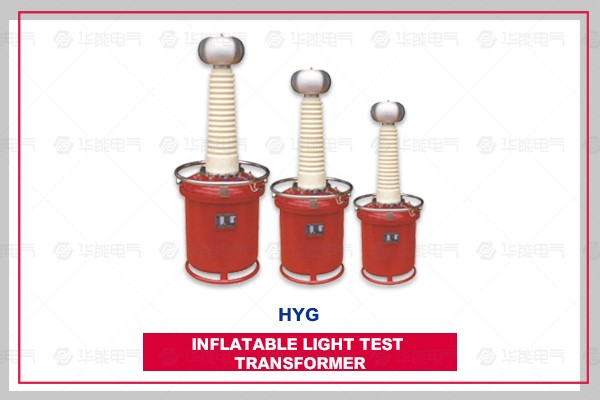

After years of efforts, our company has successfully developed the inflatable light-duty test transformer. Compared with the traditional oil-immersed light-duty test transformer, this series of products reduce the weight by 20%-60% (depending on the voltage and capacity level), and there is no oil pollution. The voltage level of a single test transformer can reach 300 KV. As a result of the adoption of new production technology, the technical performance of the product has been greatly improved, and it is especially suitable for on-site work and frequent mobile working conditions.

First, the test transformer use conditions:

1. The following requirements shall be met under the rated conditions of the test transformer.

A, ambient temperature: maximum temperature +40 ° C minimum temperature -20 ° C

B, the maximum relative temperature of the air, when the air temperature is 25 ° C, the relative humidity does not exceed 85%.

C. The installation site has no serious impact on the insulation of the transformer gas, steam, chemical dust, dirt and other explosive media.

D. When using the test transformer, the input voltage should be gradually increased and a sufficient protective resistance should be inserted in the output end. Do not break the equipment under high pressure.

2, the transformer allows running time

Under the rated voltage of the rated capacity, the continuous operation shall not exceed half an hour, and the working interval shall be 5-10 times of the working time to ensure sufficient heat dissipation of the transformer, and two-thirds of the rated voltage and rated current. Under long-term continuous operation is allowed under conditions.

Second, technical indicators:

1. Product type: AC, AC, AC, AC, AC and DC

2, voltage level: 10-600KV

3, capacity range: 10-600KVA

4, no-load current <7%

5, the impedance voltage <8%

6, rated voltage partial discharge ≤ 5pc

Third, test transformer parameters: (General parameters see the table below)

specification

Capacity KVA

Low pressure side

High pressure side

measuring

Variety

6 minutes

Temperature rise °C

impedance

Voltage%

No load

Current %

quality

Kg

Dimensions

Long Х wide

MmХmmХmm

Voltage V

Current

A

Voltage KV

Current

mA

1. The design concept, material selection and process flow of YDQ series products are all new, so it is not only small in size, light in weight, beautiful in appearance, but also has various technical indicators meeting the requirements of JB3570-98.

YDQ series products are made of high-quality cold-rolled DQ-151 oriented silicon steel sheets stacked into multi-stage cylindrical frame-shaped iron cores. The high-voltage tower coils are directly and continuously wound on Q-type wires on special high-strength insulation cylinders. The outer casing is cylindrical and filled with SF6 gas.

2. The difference between YDQ (JZ) and YDQ products is that the high-voltage rectifier silicon stack is cleverly placed in the high-voltage sleeve. The YDQ is a power frequency high-voltage AC output or a high-voltage DC output.
