Dry test transformer

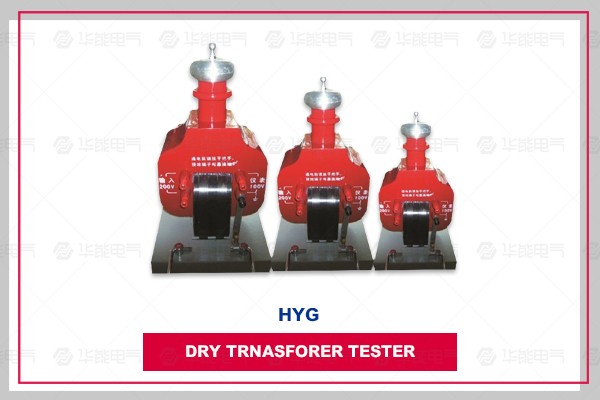

Compared with oil-immersed transformers of the same kind, the new technology of epoxy vacuum pouring and CD core with coil winding is adopted in this series of transformers. The weight and volume of transformers are obviously reduced, the insulation strength and humidity resistance are improved in quality, and the impact ability of transformers to withstand test short circuit current is greatly strengthened by effectively weakening magnetic leakage. Our company can customize any parameters of non-standard pressure products and equipment!

Product Manuals National Standard Product report

Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058

Product Introduction
Product Portfolio
Product video

Product Introduction

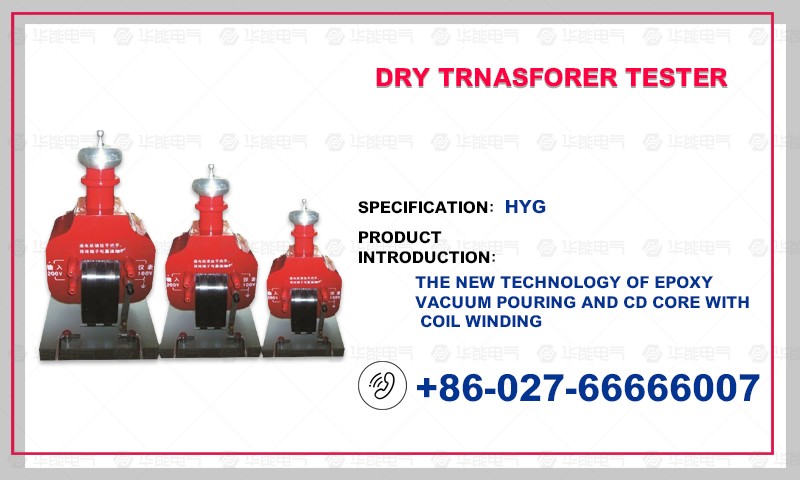

Compared with oil-immersed transformers of the same kind, the new technology of epoxy vacuum pouring and CD core with coil winding is adopted in this series of transformers. The weight and volume of transformers are obviously reduced, the insulation strength and humidity resistance are improved in quality, and the impact ability of transformers to withstand test short circuit current is greatly strengthened by effectively weakening magnetic leakage.
Product parameters

Technical index

1. Impedance voltage: 4.5%-8%

2. Output Voltage Waveform: Sinusoidal Wave

3. Surface Temperature Rise: <55 C

4. No-load loss: 0.2%-0.35%

5. Allow continuous running time: 2 hours

6. Run-time: Continuous

Main technical parameters

Specification type

capacity

(KVA)

Input Voltage (V)

Output Voltage (mA)

Output current

(mA)

Output DC High Voltage (KV)

Maximum Outward Size

(mm)

weight

(Kg)

GYD-1.5/50

One point five

Two thousand

Fifty

Thirty

Seventy

250 x 200 x 370

Twenty

GYD-3/50

Three

Sixty

270 x 220 x 370

Twenty-seven

GYD-6/50

Six

One hundred and twenty

300 x 270 x 490

Forty-eight

GYD-10/50

Ten

Two hundred

380 x 290 x 500

Sixty-eight

GYD-15/50

Fifteen

Three hundred

380 x 290 x 800

Seventy-eight

GYD-20/50

Twenty

Four hundred

380 x 290 x 800

Eighty-two

GYD-2/100

Two

One hundred

Twenty

One hundred and forty

300 x 270 x 560

Fifty-two

GYD-5/100

Five

Sixty

380 x 290 x 800

Seventy-six

GYD-10/100

Ten

One hundred

380 x 290 x 1000

Eighty

GYD-15/100

Fifteen

One hundred and fifty

380 x 290 x 1000
Product features

This series of products have the characteristics of light weight, small size, beautiful appearance, stable performance, easy to use and carry. They are especially suitable for field operation. They are new type AC/DC dual-purpose high voltage test transformers updated in China. This series of products are suitable for the field test of insulation performance of various electrical equipment in power system and power users, and the high voltage power supply in various voltage systems or devices of DC high voltage and small current of electrical products.
