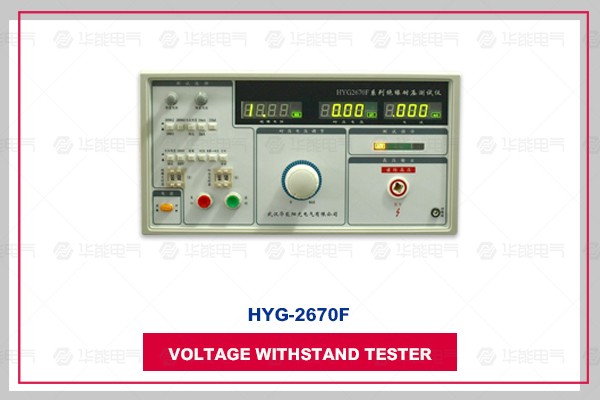

HYG2670F withstand voltage tester

The measuring principle of the instrument complies with the safety performance test requirements of GB4706.1, GB3883.1 and GB4943. It can test the electrical strength and insulation resistance of appliances using basic insulation, additional insulation and reinforced insulation. It is suitable for the withstand voltage and insulation resistance test of household appliances, instrumentation, office equipment, power tools and insulating materials. Our company can customize any parameter non-standard pressure-resistant products and equipment!

Product Manuals National Standard Product report

Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058

Product Introduction
Product Portfolio
Product video

Product Introduction

HYG2670 series AC/DC withstand voltage and insulation tester is a high performance insulation and pressure test instrument. It can display insulation resistance value, withstand voltage, breakdown current value, etc., and has various test functions. This series of testers has high high-voltage output accuracy (better than 5%), high leakage current test accuracy (better than 5%), and fast insulation resistance test speed. It is suitable for rapid flow detection of production lines, and is suitable for laboratory multi-function high precision. Claim.

The measuring principle of the instrument complies with the safety performance test requirements of GB4706.1, GB3883.1 and GB4943. It can test the electrical strength and insulation resistance of appliances using basic insulation, additional insulation and reinforced insulation. It is suitable for the withstand voltage and insulation resistance test of household appliances, instrumentation, office equipment, power tools and insulating materials.
Product parameters

1. General specifications:

UI

Three-screen LED digital display of insulation resistance value, withstand voltage and breakdown current

working environment

0-40 ° C, 20-80% RH

Input voltage

220Vac ± 10%

Input frequency

50/60Hz

fuse

Fuse 5A/8A 250V slow break

Dimensions

280mm (W) × 89mm (H) × 380 mm (D)

2. Technical indicators

Functionmodel

HYG2670E

HYG2670D

HYG2670F

HYG2670C

cross

flow

Resistant

Pressure

Rated output load

AC5kV/20mA

AC5kV/100mA

Output voltage range and accuracy

0.3-5kV ±5%

Output frequency and accuracy

50Hz ±0.5%

Output waveform

Sine wave, crest factor = 1.3 - 1.5

Output current range and accuracy

0.20-20.00mA ±5%

0.20-100.0mA ±5%

Transformer power

300VA

500VA

Timing time range and resolution

1-99s, resolution 1s

straight

flow

Resistant

Pressure

Rated output load

——

DC5kV/10mA

——

DC5kV/20mA

Output voltage range and accuracy

——

0.3-5kV ±5%

——

0.3-5kV ±5%

Output current range and accuracy

——

0.2-10.00mA±5%

——

0.2-20.0mA ±5%

Test time range and resolution

——

1-99s, resolution 1s

——

1-99s, resolution 1s

Absolutely

edge

Electricity

Resistance

Rated output load

2VA (DC1000V/2mA)

Output voltage range and accuracy

DC 500V/1000V button selection ±5%

Output voltage ripple factor

<1% (pure resistance 1000V/1mA)

Insulation resistance test range

2-2000MΩ

Insulation resistance test accuracy

DC500V: 2-1000MΩ ±5% DC1000V: 2-2000MΩ ±5%

Test time range and resolution

1-99s, resolution 1s
