This series of instruments can detect the insulation strength of the tested instruments or materials and other technical indicators, and is widely used in electrical equipment, electrical appliances, transformers, power lines, watt-hour meters, motors, power plugs, cable and other pressure test, applicable In the TV, electric fan, tape recorder, refrigerator, washing machine, microwave oven, hair dryer and other household appliances, as well as instrumentation, instrumentation and other electronic machine pressure test, and provide a test method for the implementation of national security standards, thus showing Its importance has become an indispensable instrument and equipment for scientific research institutions, measurement and testing departments and electronic industry testing electronic instruments and household appliances, in line with the "GB4706.1-2005" standard.

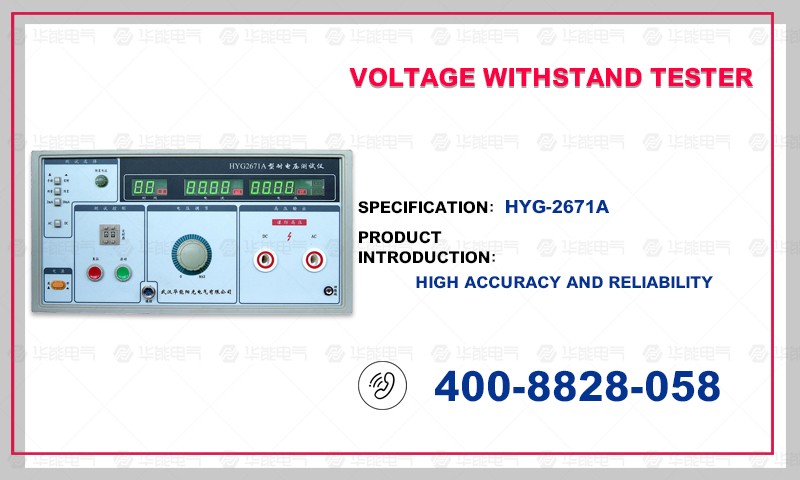

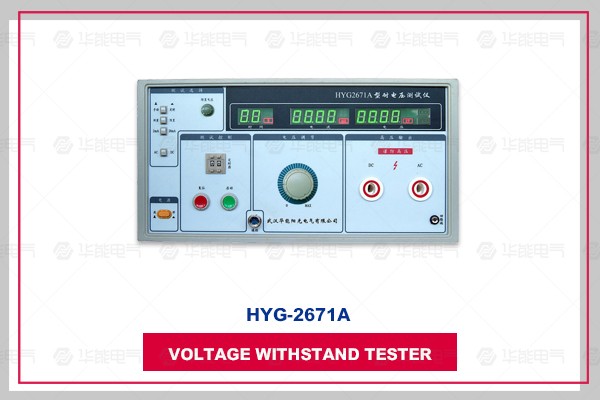

The series of instruments are beautiful in appearance and convenient to operate, and the output voltage is displayed by the digital panel meter, which is clear, intuitive and accurate. The machine has advanced technology, reasonable layout, high accuracy, good reliability and convenient maintenance.

model

parameter

HYG2671A

Test voltage

AC/DC 0~10(kV)

Voltage accuracy

0.5 to 10 (kV) ≤ ± 5%

Leakage current range

AC 0～20(mA)

DC 0 to 10 (mA)

Leakage current accuracy

AC 0.2～20(mA) ≤±5%

Output waveform

50Hz sinusoidal waveform or DC

Output Power

1000VA

time control

Digital display 1~99(s)±5% manual control 任意 arbitrary preset

Display method

Full digital display

Test discrimination

Pass/Fail

Environmental requirements

Relative humidity: ≤75%RH Ambient temperature: 0°C～40°C

There is no strong electromagnetic field interference source around; no large amount of dust and corrosive gas; well ventilated

Static power

Static power consumption <30VA

Weight

About 15kg

Volume

350×280×150

power supply

AC 220V±10% 50Hz±5%
