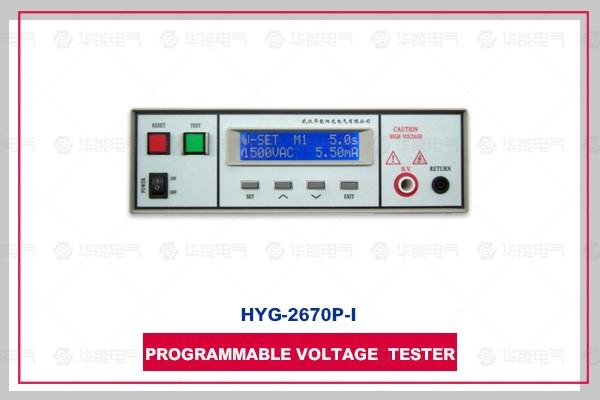

The HYG2670P-I Programmable Withstand Voltage Tester is a high performance withstand voltage tester. Software can set the output voltage, test alarm value, test time, etc., with a variety of automatic test functions. This series of testers has high high-voltage output accuracy (better than 2%), high leakage current test accuracy (better than 2%), and can be equipped with RS-232 computer interface and remote control interface. It is suitable for rapid flow detection of production lines and suitable for The laboratory has high precision requirements.

The measuring principle of the instrument complies with the safety performance test requirements of GB4706.1, GB3883.1 and GB4943, and can be used for electrical strength testing of appliances using basic insulation, additional insulation and reinforced insulation. Suitable for withstand voltage test of household appliances, instrumentation, office equipment, power tools, and insulating materials.

1. General specifications:

PLC remote control

Signal input: start

UI

16*2 blue screen character LCD display

Communication Interface

 RS232 (optional)

Correction method

Software input correction via front panel parameter input

working environment

0-40 ° C, 20-80% RH

Input voltage

220Vac ± 10%

Input frequency

50/60Hz

fuse

Fuse 1A/250V slow break

Dimensions

280mm (W) × 89mm (H) × 380 mm (D) /



2. Technical indicators

model

HYG2670P-I

HYG2670P-III

Rated output load

50VA (AC5000V/10mA)

100VA (AC5000V/20mA)

Output voltage range

300-5000V

Output voltage resolution

10V

Output voltage accuracy

 ± (2% set value + 3V)

Output frequency and accuracy

50Hz/60Hz ±0.2%, user chooses

Output waveform

Sine wave, crest factor = 1.3 ∽1.5

Output stability

± (1% output + 5V), no load to full load

Output upper limit current range

0.10-10.00mA

0.10-20.00mA

Output lower limit current range

0.0-5.00mA (optional)

Output current resolution

0.01 mA

Output current accuracy

± (2% reading + 0.03 mA)

Test time range

0,0.5-999.9s, resolution 0.1s, 0s for continuous output
