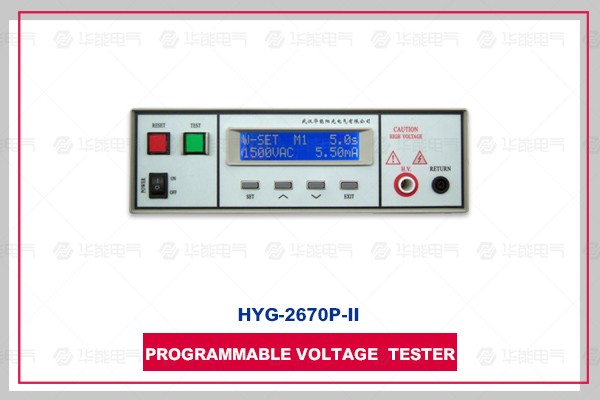

HYG2670P-II automatic AC/DC withstand voltage tester is a high performance pressure tester. Software can set the output voltage, test alarm value, test time, etc., with automatic test function. The tester has high high-voltage output accuracy (better than 2%), high leakage current test accuracy (better than 2%), and can be equipped with RS-232 computer interface and remote control interface. It is suitable for rapid flow detection of production lines and suitable for experiments. The room has high precision requirements.

The measuring principle of the instrument complies with the safety performance test requirements of GB4706.1, GB3883.1 and GB4943, and can be used for electrical strength testing of appliances using basic insulation, additional insulation and reinforced insulation. Suitable for withstand voltage test of household appliances, instrumentation, office equipment, power tools, and insulating materials.

1. General specifications:

PLC remote control

Signal input: start, stop,

UI

16*2 blue screen character LCD display

Communication Interface

 RS232 (optional)

Correction method

Software input correction via front panel parameter input

working environment

0-40 ° C, 20-80% RH

Input voltage

220Vac ± 10%

Input frequency

50/60Hz

fuse

Fuse 2A/250V slow break

Dimensions

280mm (W) × 89mm (H) × 380 mm (D) /



2. Technical indicators:





cross

flow

Resistant

Pressure

Rated output load

AC5000V/12mA

Output voltage range and accuracy

300-5000V ± (2% set value + 3V)

Output frequency and accuracy

50Hz/60Hz ±0.2%, user chooses

Output waveform

Sine wave, crest factor = 1.3 - 1.5

Output stability

± (1% output + 5V), no load to full load

Output upper limit current range and accuracy

0.10-12.00mA ± (2% set value + 0.03mA)

Output lower limit current setting range

0.0-2.55mA

Test time range and resolution

0,0.5-999.9s, resolution 0.1s, 0s for continuous output

straight

flow

Resistant

Pressure

Rated output load

DC6000V/6mA

Output voltage range and accuracy

300-6000V ± (2% set value + 3V)

Output stability

± (1% output + 5V), no load to full load

Output upper limit current range and accuracy

0.10-6.00mA ± (2% set value + 0.03mA)

Test time range and resolution

0,0.5-999.9s, resolution 0.1s, 0s for continuous output
