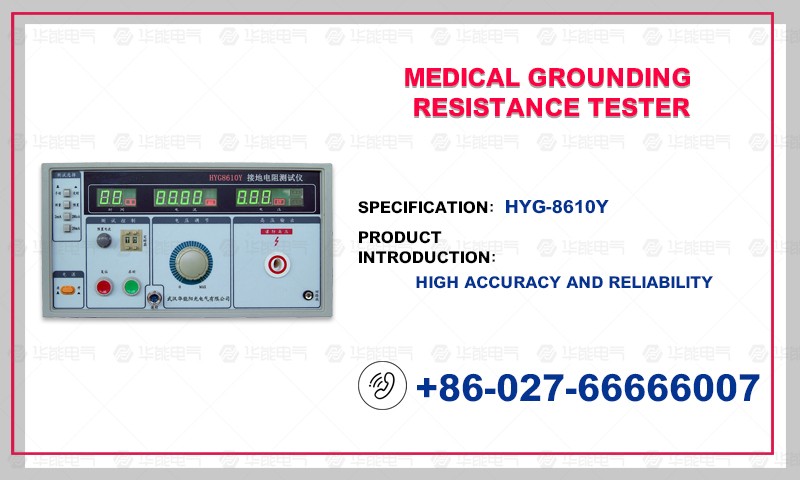

HYG8610Y medical (AC) grounding resistance tester is designed according to GB9706.1-2007 (IEC601-1 - 1988) "Medical Electrical Equipment Part 1: General Requirements for Safety". The measurement of the resistance value between the outer casing of each type of medical device and its ground wire can be satisfied.

The instrument is small in size, light in weight, beautiful in appearance and convenient in operation. The test current and resistance values are displayed in real time using LED digital panels, which are clear, accurate and intuitive. The test current can be adjusted according to the user's different needs AC: 5-30A, and the test time is continuously set between 1 and 99s. When the resistance of the measured object exceeds the user's set value (0-510 mΩ can set the alarm point arbitrarily), the instrument has an audible and visual alarm function and has an overcurrent (AC 30A) protection function. Its advanced open circuit alarm function allows users to effectively avoid false detections and missed inspections. The instrument can meet a wide range of testing needs of various types of medical equipment users.
