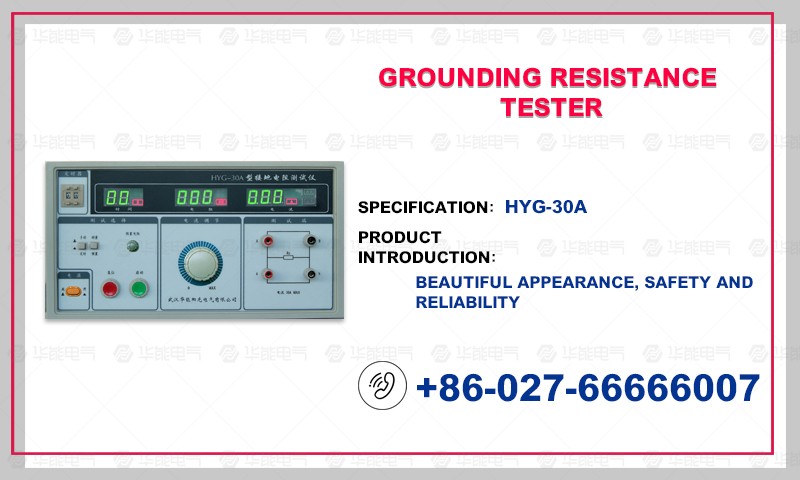

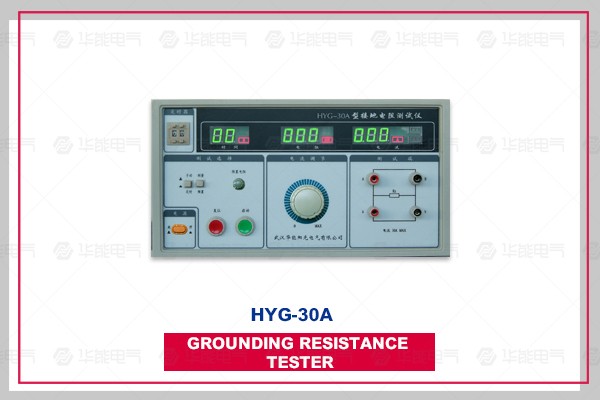

HYG-30A AC grounding resistance tester is suitable for measuring the resistance between the housing and grounding wire of various electrical machinery, electrical appliances, instruments, household appliances and other equipment.

Model	HYG-30A Grounding Resistance Tester
Test current range	AC：  5-30A（Continuous Adjustable）
Test Current Accuracy	≤±5%
output frequency	50HZ
Test time	1-99s±5% manual control
Measuring Resistance Range	0-510mΩ
Measuring Resistance Accuracy	≤±5%
Alarm resistance	0-510mΩ(arbitrary setting)
Qualification/disqualification analysis	Qualified/unqualified judgement; unqualified: sound and light alarm
Display mode	LED (Digital) Display of Current, Impedance and Time
Working power supply	AC:220V±10%,50HZ±5%
Outline size	320(W)×255(D)×175(H)
Working conditions	Ambient temperature：0-40℃
	Relative humidity：≤75%
	Atmospheric pressure：101.25KPa

The instrument is small in size, light in weight, beautiful in appearance and easy to operate. The test current and resistance values are displayed in real time with LED digital panel, which is clear, accurate and intuitive. The test current can be adjusted arbitrarily from 0 to 30A according to the different needs of users, and the test time can be set continuously from 1 to 99s. When the resistance value of the measured object exceeds the user's setting value (0-510 m_can arbitrarily set the alarm point), the instrument has sound and light alarm function, and has over current (AC 30A) protection function and sound alarm. Its advanced open-circuit alarm function enables users to effectively avoid false detection and missed detection. The instrument can widely meet different user testing needs.
