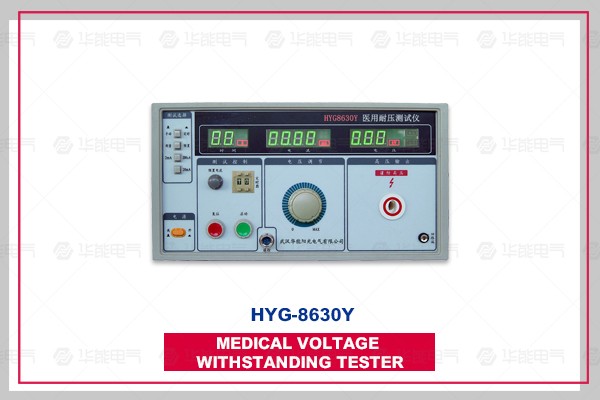

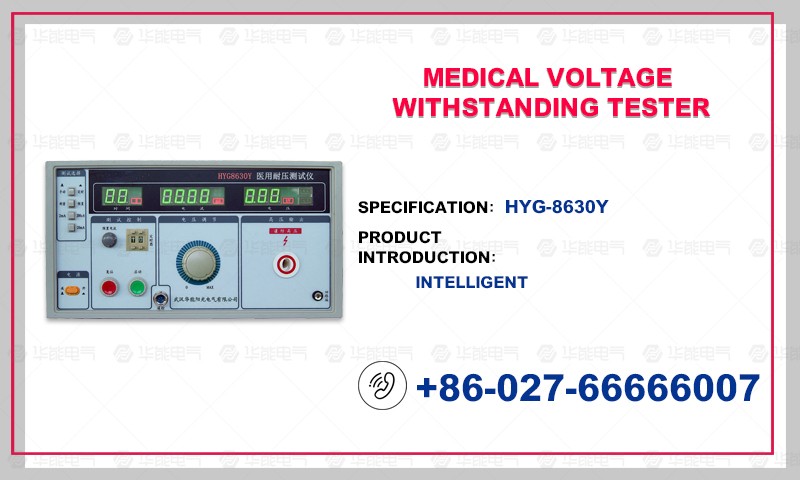

HYG-8630Y medical withstand voltage tester

The instrument complies with GB9706.1-2007 and IEC60601-1:1988 standards and is suitable for electrical strength testing of medical electrical equipment. Our company can customize any parameter non-standard pressure-resistant products and equipment!

Product Manuals National Standard Product report

Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058

Product Introduction
Product Portfolio
Product video

Product Introduction

The 8630Y medical withstand voltage tester is used to measure the electrical strength test of medical electrical equipment. It is designed according to GB9706.1-2007 (IEC60601-1:1988) "Medical Electrical Equipment Part 1: General Requirements for Safety". On the basis of absorbing and digesting advanced instrument technology at home and abroad, the products are improved and perfected in combination with the actual use of many users, and they are at the leading level in China.
Product parameters

Test voltage range

AC: 0-5kV (continuously adjustable)

Test voltage accuracy

AC: 0.5-5kV≤±5%

Output waveform

50HZ sine wave

testing time

1-99 seconds ± 5% manual control

Breakdown current test range

AC: 10μA-20mA

Breakdown current test accuracy

≤±5%

Pass/Fail Analysis

Pass/Fail Unqualified: Sound and light alarm

Display method

LED (digital) display

Transformer capacity

300VA

Automatic protection

Breakdown protection, the internal protection circuit automatically cuts off the output voltage to ensure the instrument and personal safety

External control interface

With external control interface

Working power

AC: 220V ± 10%, 50HZ ± 5%

Control part size

320(W)×250(D)×175(H)
Product features

1. This instrument complies with GB9706.1-2007 and IEC60601-1:1988 standards.

2. This instrument is suitable for electrical strength testing of medical electrical equipment.

3. The accuracy of the measurement of small leakage current is high.

4. Leakage current, test time, continuous arbitrary setting, strong applicability.

5. Simultaneously display the actual value of the measured object (time, voltage, leakage current).

6. Qualified/unqualified judgment, unqualified sound and light alarm.
