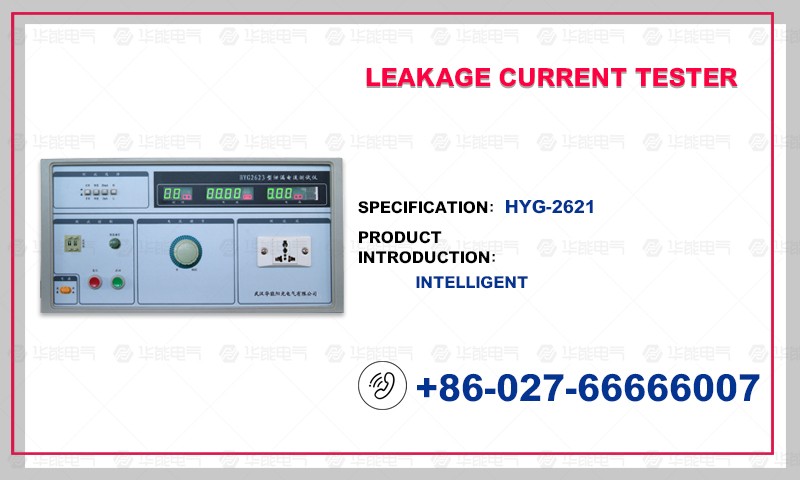

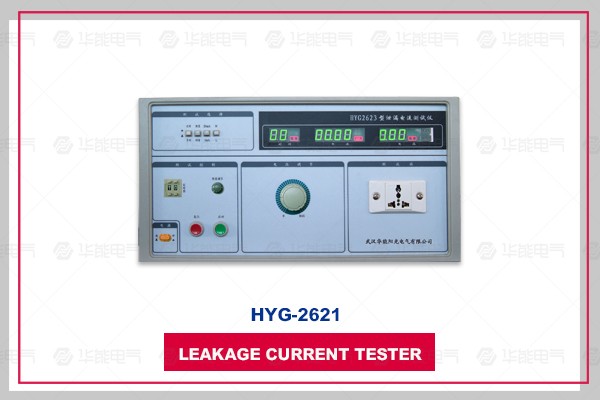

    HYG2621 Series Leakage Current Tester



    HYG2621 series leakage current tester products are designed according to international and domestic safety standards such as IEC, ISO, BS, UL, JIS, etc. Our company can customize any parameter non-standard pressure-resistant products and equipment!

    Product Manuals National Standard Product report

    Regarding product purchases, technical maintenance, and other services, please feel free to call:400-8828-058

    • Product Introduction
    • Product Portfolio
    • Product video
      • Product Introduction

        HYG2621 series leakage current tester products are designed according to international and domestic safety standards such as IEC, ISO, BS, UL, JIS, etc. It is suitable for various household appliances, power supplies, cable wires, terminal blocks, high and low voltage bakelite electrical appliances, switches, Power plug, motor, DVD player, washing machine, centrifugal dehydrator, microwave oven, electric oven, electric hot pot, TV, electric fan, medical equipment, electronic instrumentation, and safe leakage current test of high-voltage system, also research Leakage current testing equipment indispensable for laboratories and technical supervision departments.
      • Product parameters

        model

        parameter

        HYG2621

        HYG2621A

        HYG2621E

        The output voltage

        0 to 250 (V)

        Voltage tolerance

        100~250(V)±5%

        Output waveform

        50Hz sine wave

        time control

        1 to 99 (s) ± 5% continuous setting

        Leakage current measurement range

        0 to 20 (mA)

        Leakage current tolerance

        0.2 to 2 (mA) ± 5% (the alarm value can be set arbitrarily)

        Display method

        Full digital display

        Test discrimination

        Pass/Fail

        Environmental requirements

        Relative temperature: ≤75%RH Ambient temperature: 0°C~40°C

        No strong electromagnetic interference sources around; no dust and corrosive gases; well ventilated

        Transformer power

        1000VA

        2000VA

        3000VA

        Input resistance

        1000Ω 1750Ω

        Weight

        15Kg

        20Kg

        10Kg

        Volume

        380mm × 200mm × 440mm

        350mm × 160mm × 315mm

        power supply

        220V±22V 50Hz±2Hz

      • Product features

        HYG series products are based on the absorption and digestion of international advanced safety testing instruments, combined with the actual situation in China to improve and improve, HYG2621 series full digital leakage tester can be designed according to different requirements of users, respectively, designed as 1kVA, 2kVA, 0.3kVA, etc. Different power. The biggest feature of this series is that the leakage current, test voltage and test time can be arbitrarily set according to different safety standards and different requirements of users. The high sensitivity performance makes it possible to display tiny items in the tested part when testing leakage current. Leakage current to meet the test requirements of various safety standards. Through the test, it can reflect the actual value of the leakage current of the measured body; it can also compare the quality of different batches of different products or different manufacturers to ensure the safety performance of your products.
    • Product Portfolio

    • Product video
