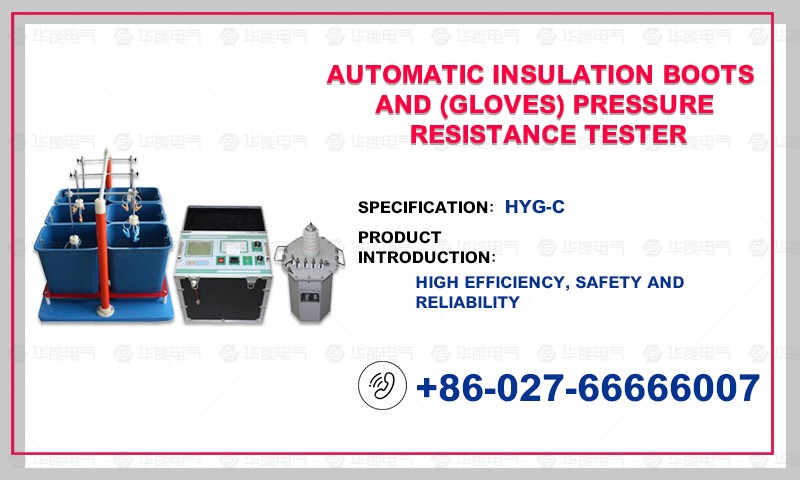

The test device is a special equipment for batch test of insulating boots (gloves). Safety tools can also be tested, such as insulating rods, insulating screwdrivers, insulating pads, etc. It is designed and manufactured by our company according to the test requirements of insulating boots (gloves) and in compliance with the opinions of users. The product effectively solves the past non-standard test, improves work efficiency and ensures work safety. It is an ideal special equipment for insulating boots (gloves).

The product uses advanced microelectronic processing technology, all the use process can be set up in advance, all Chinese interface, simple and clear operation. All test items are automatically tested after setting up, without manual intervention.

Working principle

Connecting to 0~220V power supply, according to the principle of electromagnetic induction, the transformer generates 0~30KV power frequency high voltage to each electrode, so that the insulating boots (gloves) can obtain the prescribed test voltage. According to the test rules of insulating boots (gloves), read and record the test parameters.

Input voltage: AC220V 50Hz

Output Voltage: 0-30 kV

Capacity: 3kVA

Number of tests: 6 at a time

Measuring data: can display and print the voltage value of each subject; leakage current value

Overcurrent protection; Overvoltage protection; Customized time, voltage and leakage current values

LCD display, full Chinese menu operation, with printing

Accuracy of measurement: voltage (+2%(+3 words) current (+2%(+3 words)

Quality: Insulated boot (glove) operating box 12Kg power frequency withstand voltage test bench 60kg

Conditions of use

Ambient temperature: 0-40 degrees Celsius

Altitude: <1000M

Relative humidity: <85%

There should be no gas, steam, chemical dust or other explosive and corrosive media in the use site which seriously affects the insulation.

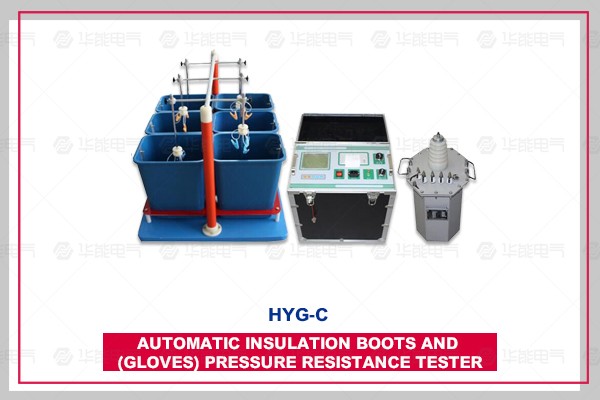

The product consists of two parts:

1. Insulating boot (glove) test vehicle, which is composed of mobile bracket, water tank, electrode rod support, etc.

2. Insulated boot (glove) operating box.
