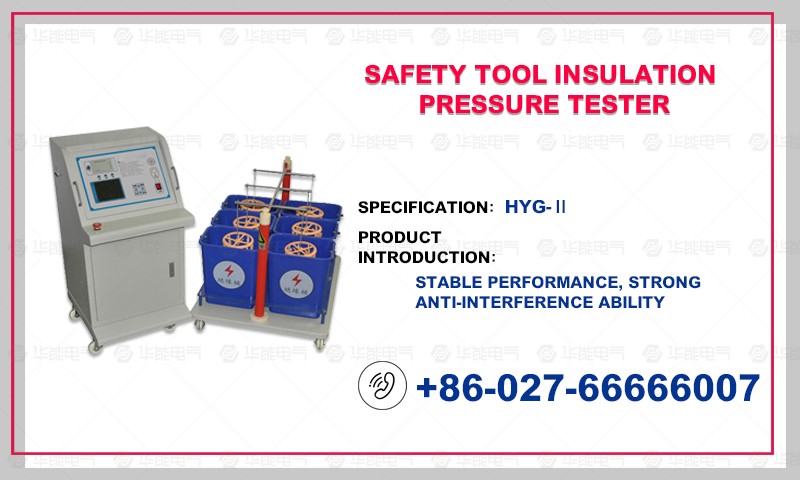

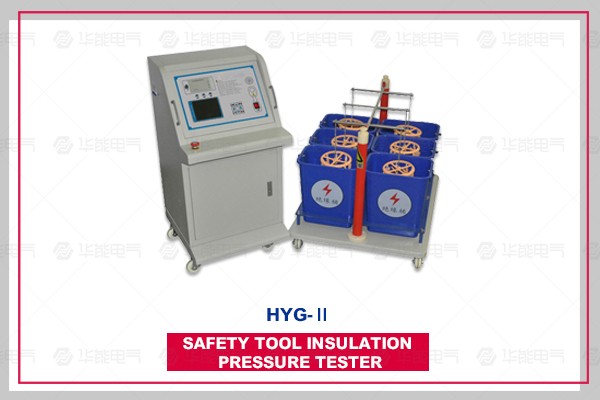

HYG-II gloves (insulated boots) voltage withstanding device is designed and manufactured by our company according to the test rules of gloves (insulated boots) and in accordance with the opinions of users. This product effectively solves the irregular testing methods in the past, thus simplifying the testing procedures and improving the testing speed. More reliable identification of gloves (insulating boots) leakage current, insulation aging, power frequency withstand voltage and other parameters. It guarantees the safety of the experimenters and is an ideal special equipment for gloves (insulating boots). Its main features are: three pairs of gloves (insulated boots) can be tested at the same time, and the leakage circuit of each pair can be read, and the unqualified gloves (insulated boots) can be accurately judged; the casters are assembled at the bottom of the structure and can be moved at will.

Input voltage: 0-220 V50HZ

Output voltage: 0-30KV

Capacity: 3KVA

Number of tests: 3 pairs at a time

Medium: 80KG Glove (Insulated Shoe) Test Vehicle

70KG Power Frequency Voltage Withstand Test Bench

Voltage, current, time and other data 4.7 inch LCD display, with backlight, reading clear and intuitive; at the same time, display voltage, current, time, etc., with a variety of data setting functions.

Full Chinese interface, working status display, simple and clear operation, wide application.

With status display and reminder function, users can see the status of the device at a glance.

All functions can be set by keys, which improves the safety and reliability of the product.Full digital adjustment, abandoning the old potentiometer adjustment, field use is extremely convenient.

The key directly sets the target voltage, leakage current, withstand voltage time, and can be applied freely.

With over-current and over-voltage protection. Accurate and rapid protection can effectively ensure the safety of personnel and equipment.

Combining hardware and software anti-jamming technology, it has stable performance and strong anti-jamming ability.

Accurate voltage control capability, small voltage control error.

The time range is from 1 second to 9999 seconds.

The step motor with high fineness is used to control the boost process of the voltage regulator, and the voltage withstanding test is carried out automatically. After the start of the test, the instrument automatically closes and boosts the voltage automatically at the speed required by the national standard, and starts timing when the preset voltage arrives, and keeps the test voltage, timing arrives, and automatically lowers the voltage. After zero, the power is automatically cut off, indicating the end of the test, and showing the leakage current of each test sample, and displaying the test results.

The product has the advantages of small size, light weight, reasonable structure, reliable and durable, fast testing speed and high working efficiency.

High-voltage, high-voltage leakage current direct reading, can also automatically identify unqualified test products, high degree of intelligence.

Three pairs of insulating boots (gloves) can be tested at the same time. Leakage current of each pair can be read and unqualified insulating boots (gloves) can be accurately judged.

The bottom of the structure is provided with casters for easy movement.

Optional Extension Function:

Each test sample has a breaking mechanism. When any breakdown occurs or exceeds the set leakage current value, the test sample will automatically detach from the test without affecting other test samples to carry out the test.

Start-up display company name, website and contact telephone, etc., is conducive to the promotion and promotion of the company's brand.

Optional remote communication, door interlocking alarm lights, alarm bells, etc.
