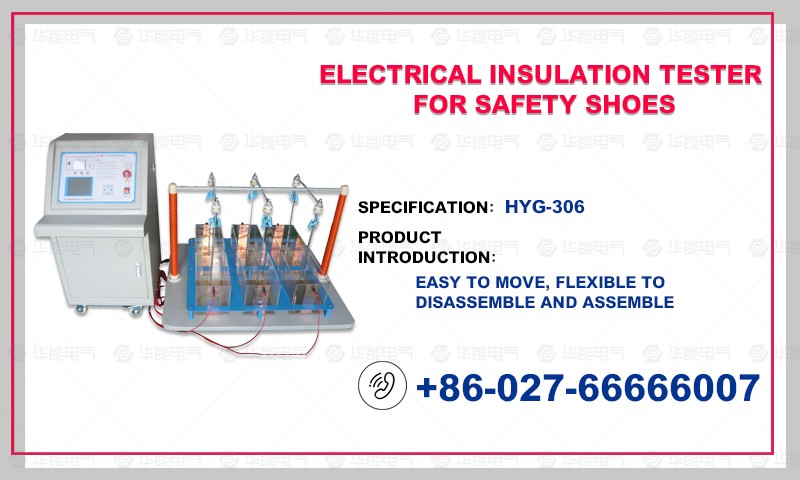

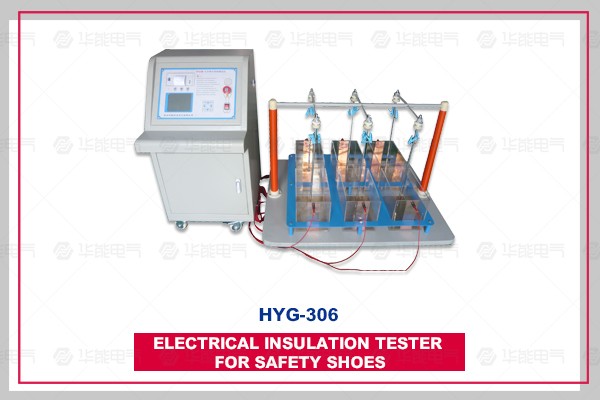

HYG-306 Safety Shoe Electrical Insulation Tester is a special equipment for batch test of insulated boots (gloves). It effectively solves the irregular testing methods, simplifies the testing procedures, improves the testing speed, reduces the testing intensity, guarantees the safety of the inspectors, reliably identifies the leakage current, insulation aging and industrial frequency voltage withstanding parameters of insulated gloves (boots). It can also be used to identify the leakage current, insulation aging and industrial frequency voltage withstanding parameters. Inspection of six insulating gloves (boots).

The device integrates high voltage power supply and control system, has simple wiring and detection, reasonable and reliable layout, convenient movement, flexible disassembly and assembly, and is an ideal replacement product.

Rated capacity: 3kVA

Input voltage: AC220V + 10% 50Hz + 1

Output Voltage: AC 0-30 kV

Manual test: boost speed 1 kV/S step-down speed 1 kV/S return to zero 2 kV/S

Automatic test: 0-75% target voltage boost speed 1 kV/S

75%-100% Target Voltage Boost Speed 100V/S

Return to zero 2kV/S

Voltage accuracy: <2.0% (F.S)

Low Voltage Current: 0-15A

Leakage current: 0-20.0mA

Leakage current resolution: 0.1mA

Current accuracy: <1.5% (F.S)

Timing range: 0-999S

Ambient temperature: - 20 50.

320 x 240 liquid crystal display and high speed thermal printer

High Voltage, Low Voltage Current, 6 Leakage Current 8-way Measurement, High Precision Sensor and High Performance 14-bit AD Acquisition Chip

Computer Dialogue Full Keyboard Operating Mode, Intelligent Work Process, Automatic and Manual Pressure-withstanding Mode

Real-time display of high voltage voltage, low voltage current, six leakage current, time and withstand voltage results, intuitive and clear display

Automatically save settings and display the last settings after power failure

Perfect over-voltage and over-current protection, arbitrary setting of output voltage, low voltage current upper limit, leakage current upper limit and timing time

It has the function of zero-return detection and can be tested only after the zero-return is confirmed. It is safe and reliable.

Approximate voltage regulation algorithm, automatic withstand voltage timing after reaching the set voltage, automatic step-down return to zero after the end of the timing

When the upper limit of low voltage current or leakage current is exceeded, the output voltage will be cut off automatically, the voltage will be reduced to zero, and the sound and light alarm will occur.

Excellent anti-jamming design of hardware and software, various anti-jamming means to adapt to harsh electromagnetic environment

Automatic error diagnosis, easy to find and solve problems

Optional remote communication, door interlocking alarm, external voltage divider calibration interface, etc.
