The automatic insulation boot (glove) voltage withstanding test device is a special equipment for batch test of insulation boot (glove). Safety tools can also be tested, such as insulating rods, insulating screwdrivers, insulating pads, etc. It is designed and manufactured by our company according to the test requirements of insulating boots (gloves) and in compliance with the opinions of users. The product effectively solves the past non-standard test, improves work efficiency and ensures work safety. It is an ideal special equipment for insulating boots (gloves).

The product adopts advanced microelectronic processing technology and radio communication technology, which completely isolates high-voltage sampling from low-voltage operation and ensures the safety of test personnel; the control box adopts manual/automatic operation mode, and the full touch menu interface of large-size LED color screen can be set up in advance, the full Chinese interface, and the operation is simple and clear. All test items are automatically tested after setting up, without manual intervention. The test result records are saved on a paperless U disk, which is convenient for users to write test reports and can save data for a long time. The test device can be equipped with independently controllable high-voltage electrodes, that is, one of the test pieces breaks down and the electrodes fall off on their own, without affecting the test of other samples, providing test efficiency (notes should be made when ordering).

Working principle

Connecting to 0~220V power supply, according to the principle of electromagnetic induction, the transformer generates 0~50kV power frequency high voltage to the electrodes, so that the insulating boots (gloves) can obtain the prescribed test voltage. After collecting the leakage current of the sample, it is transmitted to the control box by radio to display and control. According to the test rules of insulating boots (gloves), the test parameters are read and recorded.

Input voltage: AC220V 50Hz;

Output voltage: 0-50kV;

Capacity: 5kVA;

Number of tests: 8 at a time;

Measurement data: The leakage current value of each sample can be displayed and recorded.

Over-current protection; Over-voltage protection; Customized time, voltage, leakage current value (set independently for each sample);

LCD display, full Chinese menu operation, with U disk interface;

Measurement accuracy: voltage (+2%(+3 words) current (+2%(+3 words);

Conditions of use

Ambient temperature: 0-40 degrees Celsius

Altitude: <1000M

Relative humidity: <85%

There should be no gas, steam, chemical dust or other explosive and corrosive media in the use site which seriously affects the insulation.

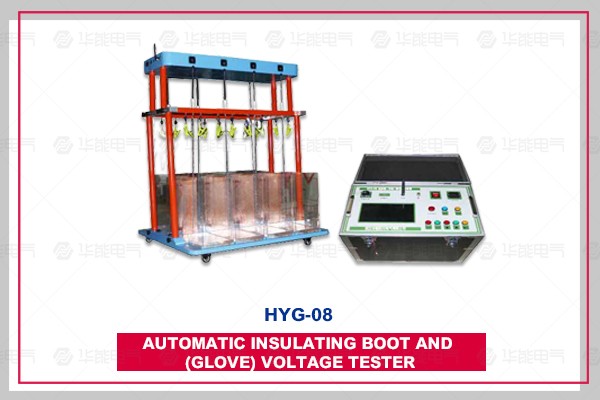

The product consists of two parts:

1. Insulating boot (glove) test vehicle, which is composed of mobile bracket, water tank, electrode rod support, etc.

2. Insulated boot (glove) control box.
