The safety performance of this instrument conforms to international standards IEC 61010-1 :2001 Instrument Implementation Standard Q/WHYG 003-2002
Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058

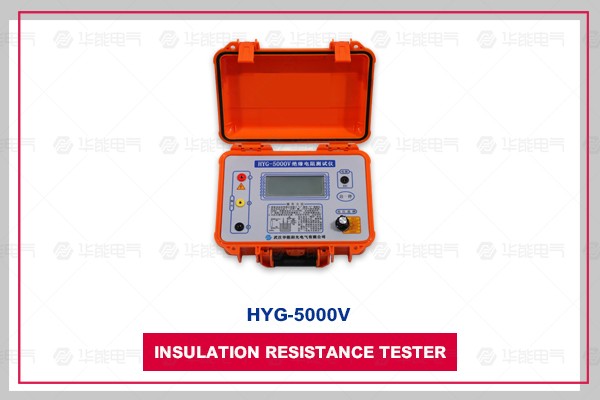

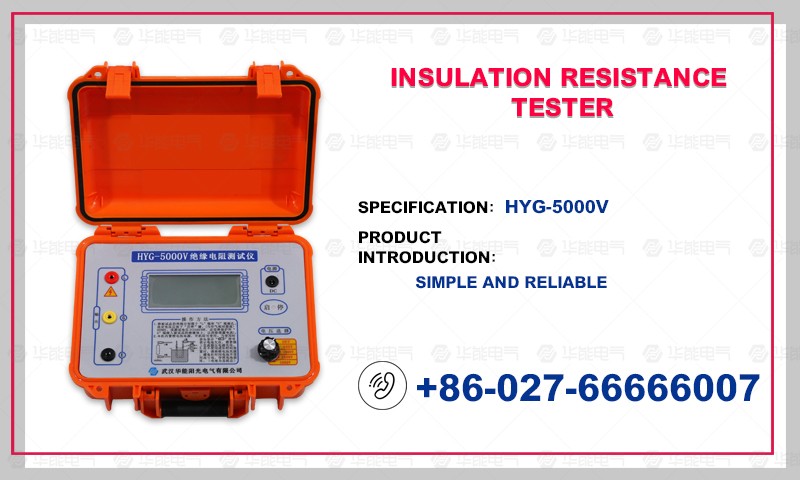

The HYG series insulation resistance tester is suitable for insulation testing in the maintenance, testing and verification of various electrical equipment. The instrument safety performance conforms to the international standard IEC 61010-1 :2001, and the implementation standard Q/WHHYG 003-2002.
1. 主要指标
| Type Number | HYG-2500V |
HYG-5000V |
HYG-10000V |
||
Rated voltage(（V） |
500V；1000V； 2000V；2500V |
500V；1000V； 2500V；5000V |
1000V,2500V; 5000V;10000V |
||
Operating Voltage（V） |
Rated voltage ± 10 % load ≥ 20MΩ | ||||
Range of measurements And error |
(1~1999)MΩ ±(5%RDG+2d) (2.00~199.9)GΩ ±(10%RDG+2d) |
(1~1999)MΩ ±(5%RDG+2d) (2.00~199.9)GΩ ±(10%RDG+2d) |
(1~1999)MΩ ±(5%RDG+2d) (2.00~199.9)GΩ ±(10%RDG+2d)
|
||
| Output short circuit current | ≤2mA |
||||
2. Other indicators
Insulation resistance: ≥ 50M
Pressure: AC 3kV50Hz 1min
Operating temperature and humidity: -10 °C ~ +50 °C 85 % RH
Power supply: DC DC12V lithium battery
Power consumption: ≤ 150mA;
Shape Size: 260mm(L) × 180mm(W) × 100mm(D)
Weight:
Suitable for insulation testing in various electrical equipment maintenance, testing and verification.
31/2 LCD big screen digital display, high resolution, easy reading.
There are four rated insulation test voltages and strong load capacity.
Easy to operate, easy to carry, accurate, reliable, stable.
Low power consumption, 12V/1 .8 AH lithium battery power, long service time. (Or use AC AC220V power supply. )
Battery voltage is insufficient, there is an undervoltage mark "
" display.
With shock-proof, dust-proof, moisture-proof structure, adapt to harsh working environment.
The protection function is perfect, and it can withstand short circuit and residual voltage impact of the measured appliance.
