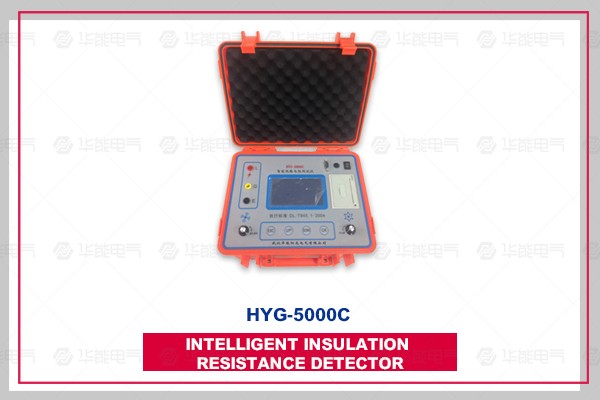

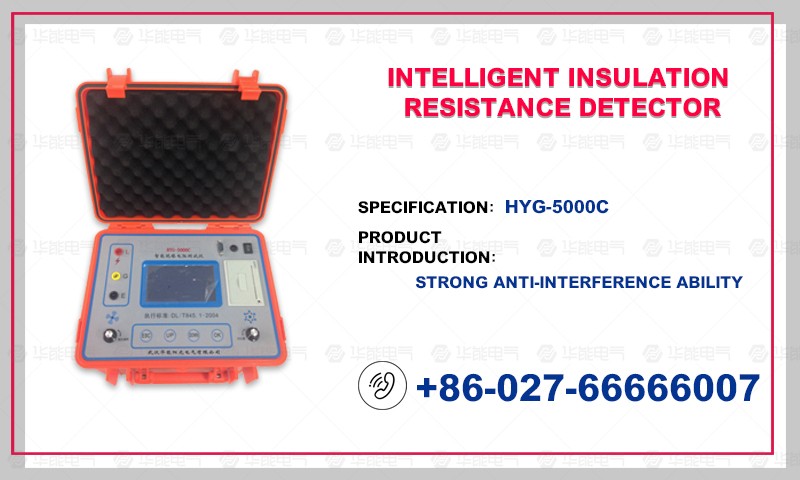

HYG-5kVC intelligent insulation resistance tester adopts micro-computer control, menu operation, large-screen LCD dot matrix display, stable performance, and is an intelligent instrument. Strong anti-interference ability, suitable for measurement in strong electromagnetic interference environment.

Rated test voltage：50V ~ 5.0 KV

Range of measurements：0 ~ 10 TΩ

Output voltage error：± 5 %

Short circuit current：Approximately 5mA

Accuracy Level：Level 5.0

Basic error in lower half range：±(5 % · Rx + 1D)

Basic error in upper half range：±(10 % · Rx +2 D)

High Pressure Display Error：±(5 % · Ux + 1D)

Leakage Current Display Range and Error：0.1 nA ~ 9.9 mA 5 %

Absorption capacitance display range and error：0.1 pF ~ 99 μF 5 %

Temperature measurement error：± 0.5 °C

Air humidity measurement error：± 2 % RH

Power supply：14.8 V Lithium

Time of battery recharging：10 DAR and 5 PI tests per day for 30 days

Insulation resistance：>500 MΩ(between test line and shell)

voltage-endurance:AC10 .0 kV50Hz 1min(between test line and case)

Working temperature and humidity:0 °C ~ +40 °C <85% RH

Storage temperature and humidity:-20 °C ~ +50 °C <90 % RH

Shape Size:320(L) × 230(W) × 270(H)(mm)

weight:4.5 kg

1, adopt micro-computer control, menu operation, large-screen LCD dot matrix display, stable performance, is an intelligent instrument.

2, strong anti-interference ability, suitable for measurement in a strong electromagnetic interference environment.

3, there are 50V, 100V, 250V, 500V, 1.0 kV, 2.5 kV, 5.0 kV, a total of 7 voltage output files.

4, output Gaodianya can also be 0V from the full range of continuous adjustment.

5, automatically measure R15, R60, R600, automatically calculate the absorption ratio,polarization index, and display leakage current and absorption capacitance.

6, with strong carrying capacity, short-circuit current of about 5mA.

7, the measurement range is up to 0 ~ 10 TΩ, automatically switch the range.

8, measurable leakage current and capacitance function.

9, the analog bar pointer and the digital display combined, the image shows the change trend of the data and accurate measurement results.

10, show the test time at any time, and every 15 seconds the buzzer automatic call prompt.

11,If the test product is charged before the test, the charged voltage and related hints are given.

12, can set the test time, reach the scheduled test time, automatically stop the measurement.

13, after the measurement of the automatic release of high pressure, high pressure release time does not exceed 30 seconds.

14, Automatic measurement of ambient temperature, air humidity and date and time of each test.

15,Can save 60 sets of measurements, and data can not be lost for 20 years.

16, with its own RS232 serial interface, can communicate with computer data.

17,Internal micro printer, can print measurement results, no reading meter work.

18,In the non-test state, there is no operation for 5 minutes. The instrument prompt is turned off.

19, with a comprehensive and complete protection function, work reliability is high.
