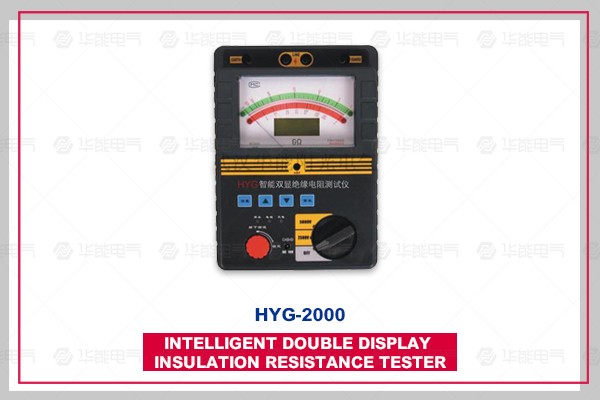

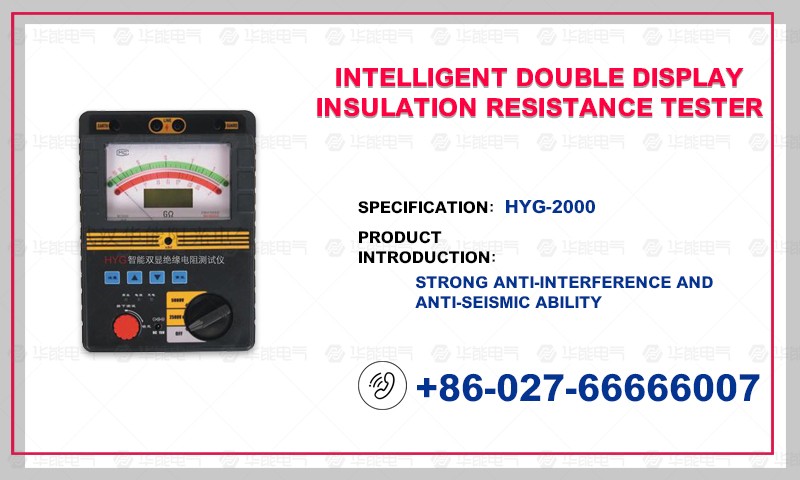

HYG-2000 intelligent double display insulation resistance tester

The HYG series intelligent double display insulation resistance tester produced by our company is an ideal test instrument for measuring insulation resistance such as large-capacity Transformers, Transformers, generators, high-voltage Motors, power capacitors, power cables, and lightning absorbers.

Product Manuals National Standard Product report

Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058

Product Introduction
Product Portfolio
Product video

Product Introduction

The HYG series intelligent double insulation resistance tester produced by our company adopts the embedded industrial single-chip microcomputer real-time operating system, and the ultra-thin filaments are perfectly combined with the graphic lattice liquid crystal display. The series has a variety of voltage output levels(2500V DC/5000V DC), large capacity, strong anti-interference, synchronous display of pointers and numbers, dual use of AC and DC, simple operation, automatic calculation of various insulation indicators(absorption ratio, polarization index), various measurement results It has the characteristics of preventing power off. It is an ideal test instrument for measuring insulation resistance such as large-capacity Transformers, Transformers, generators, high-voltage Motors, power capacitors, power cables, and arresters.

Product parameters

		HYG2000			HYG2010
Output Voltage		500V DC	1000V DC	2500V DC	5000V DC	10000V DC
precision	Temperature	23℃±5℃
	Insulation resistance	1MΩ～20GΩ ±5％	2MΩ～40GΩ ±5％	5MΩ～100GΩ ±5％	10MΩ～200GΩ ±5％	20MΩ～400GΩ ±5％
	Output Voltage	4MΩ～20GΩ 0～+10％	8MΩ～40GΩ 0～+10％	20MΩ～100GΩ 0～+10％	40MΩ～200GΩ 0～+10％	80MΩ～400GΩ 0～+10％
High voltage short circuit current		≥1mA
Working power supply		8 sections AA batteries(8 sections AA rechargeable batteries, external charger)
Working Temperature Humidity		-10℃～40℃，maximum relative humidity 85
Stograe temperature and humidity		-20℃～60℃，最大相对湿度90％maximum relative humidity 90
Insulation performance		When the voltage between the circuit and the housing is 1000V DC, the maximum 2000 MΩ
Pressure resistance		When the voltage between the circuit and the housing is 2500 V AC, bear 1 minute
Size		230mm×190mm×90mm (L×W×H)
Weight		2KG
Annex		Test wire set,manual, certificate of conformity, charging adapter(type C)

Product features

1, there are a variety of voltage output options HYG2000(500V DC/1000V DC/2500V DC), HYG2010(2500V DC/5000V DC), instrument insulation test for HYG2000 at 500V can be measured up to 20GΩ, It can be measured at a maximum of 40GΩ at 1000V and a maximum of 100GΩ at 2500V; For the HYG2010 type, it can be measured at a maximum of 100GΩ at 2500V and at a maximum of 200GΩ at 5000V;

2, the rated output voltage can be kept as low as 4MΩ / 8MΩ / 20MΩ for the BC2533 load resistance; For the BC 2550 type 20MΩ / 40MΩ; For the BC2503 type, it is 40MΩ / 80MΩ, which allows the meter to accurately measure the lower insulation impedance.

3, automatic conversion of the high and low range of double scale indicators, color scales easy to read, and LED display of the corresponding color.

4, the entire machine adopts ABS plastic case portable design, with strong anti-interference ability, compact structure, beautiful appearance.

5, the instrument adopts an ultra-thin type Zhangsi meter head, strong seismic ability.

6, AC and DC dual use, built-in rechargeable batteries and smart charging modules, the entire output power(C type).

7, is an ideal test instrument for measuring Transformers, Transformers, generators, high-voltage Motors, power capacitors, power cables, lightning absorbers and other insulation resistance.
