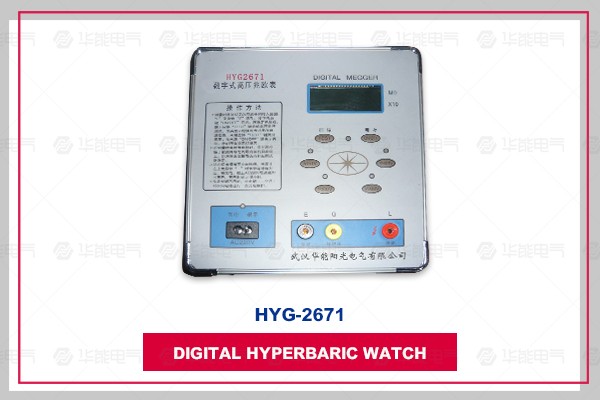

HYG-2671 digital high-voltage megaohmmeter is an indispensable instrument commonly used in power, post and telecommunications, telecommunications, electromechanical installation and maintenance, as well as industrial enterprises which use electric power as industrial power or energy. HYG-2671 digital high-voltage megaohmmeter is suitable for measuring the resistance value of various insulation materials and insulation resistance of transformers, motors, cables and electrical equipment. It is an alternative product of traditional insulation shaker. The instrument has the advantages of automatic boost, digital display of ohmic value, small size, light weight, strong reliability and good stability.

HYG-2671 digital high voltage megaohmmeter conforms to the power industry standard DL/T845.1-2004 of the People's Republic of China. It is composed of large scale integrated circuits. This instrument is indispensable for the installation and maintenance of electric power, post and telecommunications, telecommunications, electromechanical equipment, and the use of electric power as industrial power or energy in industrial enterprises. It is suitable for measuring the resistance value of various insulation materials and the insulation resistance of transformers, motors, cables and electrical equipment.

HYG-2671 digital high-voltage megaohmmeter has high output power, high short-circuit current value and strong anti-interference ability. It is powered by self-contained rechargeable battery, automatic range conversion, multiple output voltage levels (each model has four voltage levels), wide range of test resistance, LCD display makes measurement very convenient and fast. It is an indispensable instrument for the installation and maintenance of electric power, post and telecommunications, electromechanical equipment, and the industrial enterprises which use electric power as industrial power or energy. It is also a necessary testing equipment for the precautionary test rules of electric power equipment.

1. Instrument technical indicators:

(1) Conditions of use: ambient temperature: 0 +45

Relative humidity: <85%RH

(2) Output Voltage Level, Measurement Range, Resolution and Error

③Output Maximum Voltage Load Capacity and Short Circuit Current

DC: 8 x 1.5V (AA, R6) battery or rechargeable battery

Power supply: AC 220V/50Hz, DC 12V

Power consumption: static power consumption < 160mW; maximum power < 2.5W

3. Volume and weight

Body symbols: 220 mm × 200 mm × 105 mm;

Weight: <1.4 kg

It has high output power, strong load capacity and strong anti-interference ability. The outer shell of this table is made of high strength aluminium alloy, equipotential protection ring and fourth-order active low-pass filter are installed in the machine, which can effectively shield the external power frequency and strong electromagnetic field. Because the output short-circuit current is greater than 1.6mA, it is easy to make the test voltage rise rapidly to the rated value of the output voltage. For low resistance measurement, the voltage drop does not affect the measurement accuracy because of the proportional design.

This instrument does not need human work and is powered by self-contained rechargeable batteries. The measuring range can be automatically changed. Clear panel operation and LCD display make the measurement very convenient and fast.

The output short-circuit current of this table can be measured directly without load measurement. The test resistance has wide measuring range and light weight.
