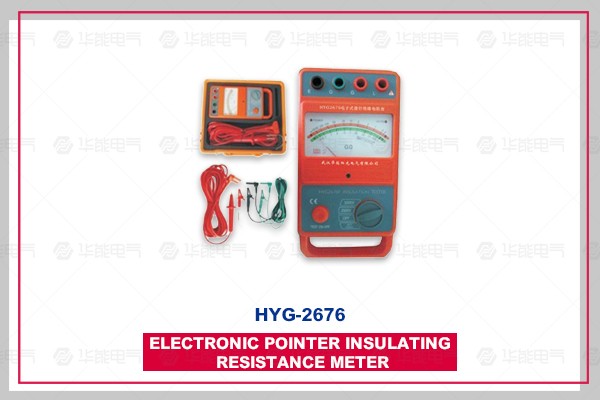

HYG-2676 electronic pointer insulating resistance meter

The safety performance of this instrument conforms to the international standard IEC 61010-1 :2001. This instrument implements standard Q/WKD09.

Product Manuals National Standard Product report

Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058

Product Introduction
Product Portfolio
Product video

Product Introduction

The HYG-2676 electronic pointer insulation resistance meter is suitable for insulation testing in the maintenance, testing and verification of various electrical equipment. There are single voltage models, double voltage models and three voltage models. The rated voltage and range are reasonably configured into a variety of specifications and are widely applicable.

Product parameters

1. Key indicators

Type Number	2676 B	2676 C		2676 D	2676 E	2676 F	2676 G
Type Number	2676 Bh	2676 Ch		2676 Dh	2676 Eh	2676 Fh	2676 Gh
Rated Voltage(V)	1000	2500		5000	5000 10000	2500 5000	500 1000 2500
Measuring Voltage	Rated voltage ×(1 ± 10 %) load resistance not less than 1 % of the range
Median resistance	1GW	1GW		1GW	1G 10GW	1GW	100MW 200MW 500MW
Range of measurements	0~100GW 0~100MW	0~200GW 0~200MW	0~500GW 0~500MW		0~1000GW 0~500GW	0~500GW 0~250GW	0~40GW 0~20GW 0~10GW
Accuracy Level	5.0
5 % error range	(>.005~<20)GW (>.05~<2)MW	(>.01~<50)GW (>1~<50)MW		(>.02~<100)GW (>2~<100)MW	(>.04~<200)GW (>.02~<100)GW	(>.02~<100)GW (>.01~<50)GW	>2MW~<10GW >1MW~<5GW >.5MW~<2.5GW
10 % error range	(.002~.005)GW (20~100)GW (0.2~0.5)MW (20~100)MW	(.005~.01)GW (50~200)GW (.5~1)MW (50~200)MW		(.01~.02)GW (100~500)GW (1~2)MW (100~500)MW	(.02~.04)GW (200~1000)GW (.01~.02)GW (100~500)GW	(.01~.02)GW (100~500)GW (.005~.01)GW (50~250)GW	(1~2)MW (10~40)GW (.5~1)MW (5~20)GW (.25~5)MW (2.5~10)GW
Output short circuit electric current	≥ 2mA

2. Classification of Scale Accuracy Levels

The starting and ending points of the effective scale of the header are the intervals within the top horizontal(`` T ") scale points and are divided into sections I, II, and III. Section I is the starting point of the starting scale to the starting point of Section II(''"). The third section is the end of the second section to the maximum effective measure point.

3. Timer timing error(HYG2676 H type only)

15S ± 0.2 S; 60S ± 0.5 S; 10 min ± 5s

4. Other indicators

Insulation resistance: ≥ 50M (1000V)

Pressure: AC 5kV50Hz L min

Operating temperature and humidity: -10 °C ~ +50 °C 85 RH

Storage temperature and humidity: -15 °C ~ +55 °C 90 RH

Power supply: 8 × 1.5 V(AA, LR6) batteries or 11.1 V/1 .8 Ah lithium batteries

Power consumption: ≤ 280M A(when E, L end short circuit)

Size and Weight: 255mm(L) × 135mm(W) × 80mm(D); 1kg

Product features

Suitable for insulation testing in various electrical equipment maintenance, testing and verification.

There are single voltage models, double voltage models and three voltage models. The rated voltage and range are reasonably configured into a variety of specifications and are widely applicable.
Large capacity, strong anti-interference ability. It can meet the requirements of high pressure, high resistance, and large capacity load testing, and the values are accurate, stable, and reliable.
Insulation resistance value adopts logarithmic fraction line, uniform and clear. Double range automatic conversion, easy to read.

With a timer(H type) meter, automatic timing, and at 15 S, 60 S, 10 min lock the indication, send out sound and light hints, easy to read the indication.

Low power consumption, 8 × 1.5 V(AA, LR6) alkaline battery can be used.Or 11.1 V/1 .8 Ah lithium battery,

Long use time.

With battery capacity inspection function.
With shock-proof, moisture-proof, dust-proof structure, suitable for outdoor work environment.
The protection function is perfect, and it can withstand short circuit and residual voltage of the measured capacitor.
