With the continuous updating and development of modern technologies, higher requirements are put forward for the reliability of power systems and Gaodianya equipment. Accidents or damage to electrical equipment are usually closely related to the defects of insulation. The large capacity, high voltage, diversified structure and sealing of electrical equipment should be updated and higher requirements. The use of large-capacity equipment continues to increase, and the insulation performance of ordinary megabytes can not be detected.

The power test rules require a series of insulation performance tests for many power equipment such as cables, motors, generators, Transformers, Transformers, high-pressure switches, and lightning absorbers. The first step is to do insulation resistance tests.

When testing the insulation resistance of large-capacity power equipment, the insulation resistance value is related to the pressure time. The longer the pressure time, the higher the insulation resistance value. This phenomenon is called the insulation absorption phenomenon. To understand the insulation performance of the sample, we must first do absorption ratio and polarization index test to provide safety guarantees for the next step of leakage, medium loss, partial discharge, etc.. Insulation performance test. In accordance with the power standardization regulations, our company has introduced a double display tester of high capacity, high anti-interference, and stable performance of intelligent insulation resistance, and conducted insulation, absorption ratio, and polarization index tests on power equipment to provide accurate judgment for the series of insulation tests.

Safety specifications

IEC 61010-1 CAT.IV 600V Pollution Level 2

IEC 61326 EMC Specification: Electrical Equipment for Testing, Control and Inspection

IEC60529 IP64 (Outer Box Closed State)

AC power supply: 220V + 10%, 50/60 HZ, 20 VA

Battery Power Supply: 16.8V Lithium Ion Rechargeable Battery

Battery life: 5000V@100M, about 6 hours

Dimension (length x width x height): 37cm x 27cm X 17cm

Weight: 3kg

Test voltage accuracy: 100% to 110% of nominal value

Current measurement range: 10mA

Accuracy of current measurement: 5%+0.2nA

Short-circuit current: 2 to 5 mA, adjustable output (10 mA short-circuit current can be customized)

Capacitance test range: 20uF

Capacitance Measurement Accuracy: 15%+0.03uF

Discharge rate of capacitance sample: from 5000V to 10V, 0.5S/F

Insulation Resistance Measurement Range and Accuracy (Temperature: 23+5 C, Relative Temperature: 45-75% RH)

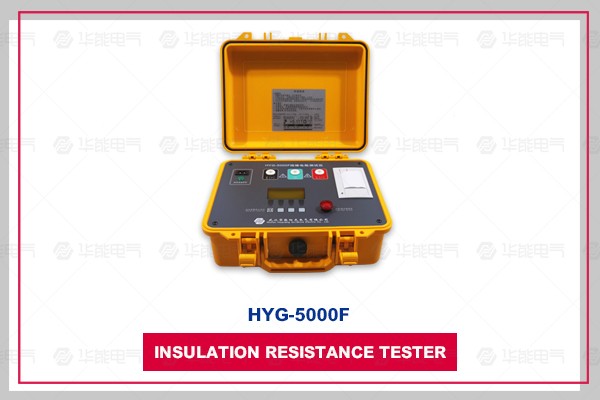

The HYG-5000F insulation resistance tester has four measuring ranges: 500V, 1000V, 2500V, 5000V. The maximum test can reach 5T_.

Design in strict accordance with safety standards

Insulation Resistance Range 5T@5kV

Short-circuit current can be adjusted, up to 5mA (can be customized up to 10mA short-circuit current products).

The test values of polarization index (PI) and induced absorption ratio (DAR) can be displayed automatically. Leakage current and capacitance can be tested.

The anti-jamming performance is superior. When the interference current reaches 2mA, the instrument still guarantees the test accuracy.

Capacitance test sample discharges rapidly. When cable is tested, no manual discharges are needed. The instrument discharges automatically and quickly.

Two modes of power supply: using lithium-ion batteries to supply power, the duration can be up to 6 hours (5000V@100M test resistance).

At the same time, it can be charged in use. When power failure occurs, AC power supply can be automatically converted to battery power supply.

Full Chinese display, Chinese prompt operation, simple and clear, and can display insulation resistance analog column.

Digital filtering function, external impact caused by the display value deviation when the use of filtering function to mitigate the impact.

Perfect protection function and fuse burning prompt function.

Line live warning: When the tested product has dangerous voltage, the instrument buzzer will ring long, and the display screen will prompt the high-voltage symbol.
