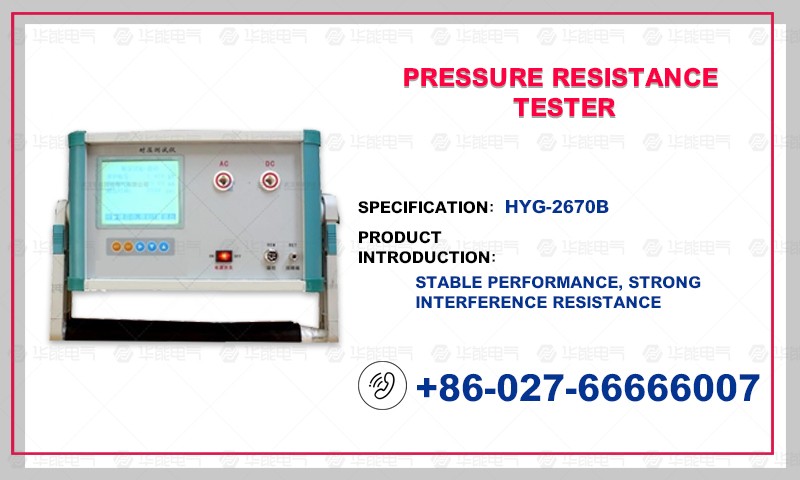

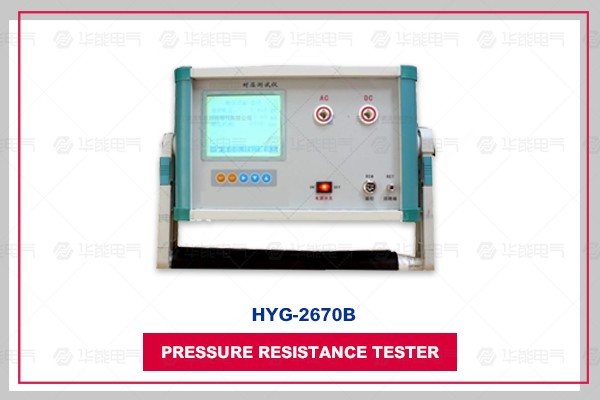

The HYG2670B pressure tester is a test equipment designed according to the latest national industry test standards. It is safe, reliable, powerful, convenient to use, and simple to maintain. It is mainly used for testing the insulation strength of various electrical products, electrical components, insulation materials, etc. at specified voltages to assess the insulation level of the products, discover the insulation defects of the tested products, and measure the ability to overvoltage. It is the first choice of products that require pressure-resistant test equipment such as electric power operation related departments, electrician and electrical appliance manufacturing enterprises, metallurgy, coal mines, electrified railway related departments, scientific research institutions, and institutions of higher learning.

1. Amount fixed capacity(common parameters):

1kVA, 2kVA, 3kVA, 5kVA, 7kVA, 10kVA, 15kVA, 20kVA, 30kVA, 50kVA

2. The following are the technical parameters of 100VA:

Instrument voltage: 0 to 100V

Output power: 100VA

Output voltage: AC/DC 0 ~ 5000 V

Output current: AC0 ~ 20mA

DC 0 ~ 10mA

Display voltage measurement accuracy: 5 %FS

Display current measurement accuracy: 5 %FS

Time length: 0 ~ 9999 S

Lift speed: 100V/S 200V/S 500V/S

Power voltage: AC220V ± 10 %, 50Hz ± 1 Hz

Use environment: ambient temperature 0 ~ 50 °C Relative humidity ≤ 85 RH

Voltage, current, time, state information and prompt information and other data 4.7 feet large screen LCD display, the reading is clear and intuitive;

All-Chinese interface, simple and clear operation, can adapt to a variety of applications;

Light touch button operation, all functions can be set through the keys, improving the safety and reliability of the product;

The all-digital calibration method abandons the old potentiometer adjustment, and the on-site use is extremely convenient and the accuracy is easy to control(this function has password protection);

Status alert function, all-Chinese guided operation, even in the absence of instructions can also be skillfully manipulated;

The test results show function, can automatically judge the test results(test pass or test failure), and can reliably record the voltage at the time of overcurrent, flashover or breakdown of the test product;

Timing function, automatic/manual control, when the voltage automatically rises to a set value, the device automatically starts timing. When the timing time arrives, the test result is displayed, and the device automatically returns to zero.

Manual control mode, this mode is similar to the traditional electric lift/buck mode, ascending / descending is controlled by the keys, the device automatically judges the up/down limit, with overvoltage protection;

The lift speed intelligent control, when the voltage reaches the target voltage 80 %, the lift speed will automatically slow down, and when the target voltage reaches 90 %, the lift speed will further slow down;

Adopt hard, software anti-jamming technology combination, stable performance, strong anti-interference.
