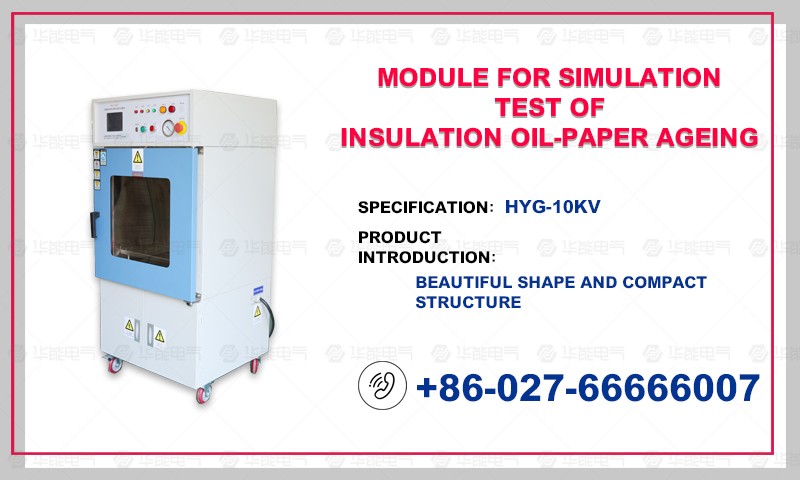

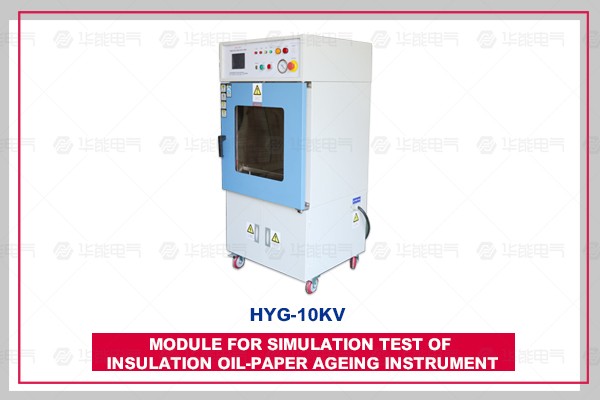

The HYG-10KV insulating oil-paper aging instrument simulation test platform module adopts touch screen advanced control. Among them, vacuum drying box is suitable for baking chemical gases and products in the food processing industry, removal of substrate stress, curing of ink, drying of lacquer film, etc.. Widely used in electronics, motors, communications, electroplating, plastics, hardware chemicals, food, printing, pharmaceuticals, PC boards, powders, including leaching, spraying, glass, ceramics, wood building materials, etc.. Precision baking, drying, tempering, preheating; Voltage resistance plus voltage 10KV electric shock aging.

Studio size: 500×400×400mm(length × width × height)

Box body shape size: approximately 680×700×1500 mm(length × width × height)

Temperature range: room temperature + 10 °C ~ 300 °C

Temperature deviation: ≤ ± 2 °C(heating plate)

Temperature fluctuation: ≤ ± 0.5 °C

Temperature and humidity control accuracy 0.1 °C

Warming rate: 3 ~ 5 °C / minute

Vacuum ≤ 0.1 MPa pressure gauge

Total installed capacity of equipment: approximately 3.0 KW

Gaodianya output: 0 ~ 10KV continuous output, high voltage protection current 5mA

Temperature Control and Voltage Resistance Time Control Range: 30 working days

Power supply: 380V ± 10V50Hz ± 1 %

1, meet the standard: JBT 5520-1991 drying box technical conditions; JBT 9505-1999 vacuum drying box.

2, voltage resistance implementation national standard: GB4706.1-2005

Temperature control:

A. Aging box adopts air heating method, and the box body has thermal insulation function;

B. The controlled temperature range is: room temperature to 300 °C;

C. Temperature deviation ≤ ± 1 °C, temperature fluctuation ≤ ± 0.5 °C;

D. Temperature is automated and can work continuously for at least 240 hours.

Output voltage control:

A. Continuous output voltage range 0-10 kV;

B. Voltage control deviation ≤ ± 3V;

C. Voltage output line with high temperature resistance

D. High voltage protection current is 51mA.

Vacuum and atmosphere control:

A. Connect the intake and suction lines inside the box;

B. The box body has good sealing properties, and the vacuum in the box can reach 0.1 MPa;

C. Equipped with power matching vacuum pump, flow rate greater than 14m /h, limit vacuum 200 mbar, power greater than 0.5 kW. Ultraviolet aging original: the aging box equipped with ultraviolet lamps.

Use environment: altitude: ≤ 3000m; Environmental temperature: 0 °C ~ 45 °C; Environmental relative humidity: Relative humidity: ≤ 80 (25 °C); Power voltage: 220V, 50Hz.

Operation: The test platform is a computer workstation control mode, which can achieve a temperature of 300 °C and an output voltage of 10KV. The ultraviolet aging original is controlled to monitor the pressure in the box. The thermal aging test, electrical aging test and electrothermal aging test can be completed independently.

Appearance: beautiful shape, compact structure, easy to use, easy to clean.

Mechanical strength requirements: Can withstand the severity level I vibration(sinusoidal) response test, vibration endurance test, impact response test, impact endurance test, and collision test specified in GB/T 11287 and GB/T 14537. The device worked normally during the test. After the test, the fastener is loose and the structure is damaged, and the function is normal within the technical requirements.

Insulation performance: Under normal atmospheric conditions, the charged part of the device is required to have good insulation. The chassis adopts necessary protection measures against electrostatic and electromagnetic radiation interference. The uncharged metal parts of the chassis are electrically integrated and reliably grounded.

Shell Protection Performance: Installation components meet the IP55 level requirements specified in GB/T 4208.

Fault-proof operation function: The device can realize the opening and turning off power.
