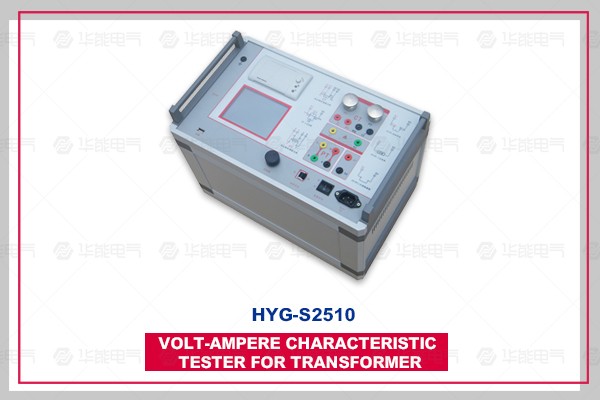

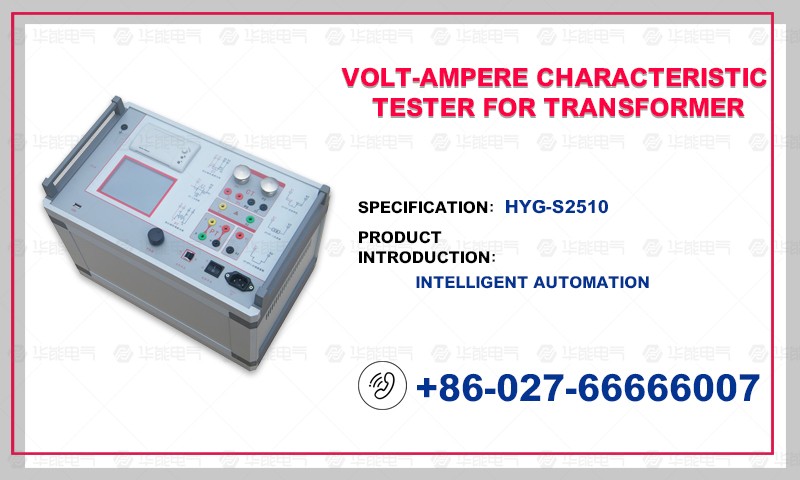

It is designed for automatic testing of protective and metering CT/PT. It supports current and voltage methods. It can test bushing CT installed in transformer or switchgear. It is also suitable for laboratory and field testing.

Reference Standards: GB 1207-2006, GB 1208-2006.

Working power supply:AC220V + 10%, 50Hz

Device output:0-2500Vrms, 5Arms (20A peak)

Excitation accuracy:Less than 0.5% (0.2% * reading + 0.3% * range)

High current output:0 ~ 1000A

Resistance Measurement of Secondary Winding

Range:0.1 ~ 300 ohm

accuracy:Less than 0.5% (0.2% * reading + 0.3% * range)

Second Actual Load Measurement

Range:5 ~ 1000VA

accuracy:Less than 0.5%(0.2%*reading+0.3%*range)+0.1VA

Angle difference

accuracy:+ 4min

Ratio difference

accuracy:Less than 0.05%

CT Variable Ratio Measurement

Range:5-25000A/5A (5000A/1A)

accuracy:Less than 0.5%

PT Variable Ratio Measurement

Range:1-500KV

accuracy:Less than 0.5%

work environment

Temperature: -10 ~40 C, humidity: <90%, altitude: <1000m

Size, weight

Size: 410mm * 250mm * 300mm, weight: < 22Kg

The principle of current method and voltage method is used to detect casing CT conveniently.

Support the detection of CT and CT.

All testing items can be completed on a single computer without additional auxiliary equipment.

It has a miniature fast printer and can print test results directly on the spot.

Intelligent controller, simple operation.

Large screen LCD, graphical display interface.

The inflection point of CT/PT (excitation) is given automatically according to the regulation.

The error curves of 5% and 10% are given automatically.

It can save 3000 sets of test data without loss after power failure.

Supporting U-disk to save data, can be read by standard PC, and generate test reports.

It's compact and portable < 22Kg, which is very convenient for field test.

Main test functions of the tester: (see table below)

CT (Protection and Measurement)

Volt-ampere characteristic (excitation characteristic) curve

Give inflection point value automatically

The error curves of 5% and 10% are given automatically.

Variable ratio measurement

Ratio difference measurement

Phase (angular difference) measurement

Polarity judgement

One pass test

AC withstand voltage test

Secondary load test

Secondary winding test

Core demagnetization

CT Detection of Supporting Casing

PT

Volt-ampere characteristic (excitation characteristic) curve

Give inflection point value automatically

Variable ratio measurement

Polarity judgement

Ratio difference measurement

Phase (angular difference) measurement

AC withstand voltage test

Secondary load test

Secondary winding test

Core demagnetization
