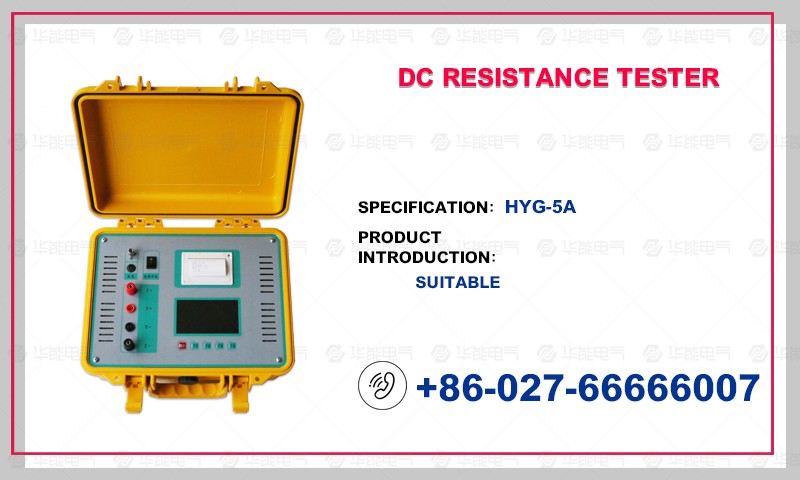

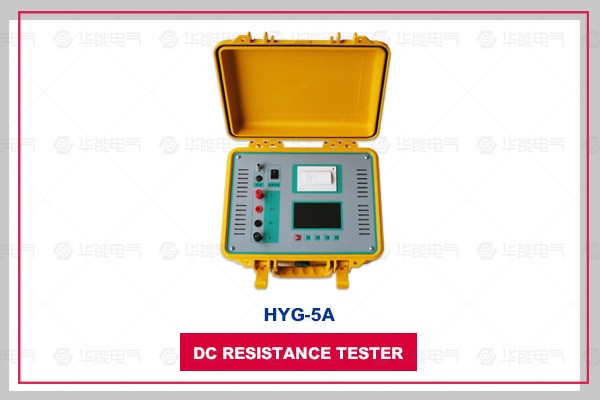

The HYG-5A DC resistance tester is an indispensable test item for Transformers after handover, overhaul, and change of splitter switches. Under normal circumstances, measuring the DC resistance of transformer windings and high-power inductive equipment by traditional methods(bridge method and pressure drop method) is a time-consuming and laborious task. In order to change this situation, shorten the measurement time and reduce the workload of the test personnel, the company has developed a DC resistance tester(hereinafter referred to as direct resistance meter). It adopts the new power supply technology, which has the characteristics of stable performance, rapid measurement, compact volume, convenient use, high measurement accuracy, and good data repeatability. It is an ideal equipment for measuring Transformer windings and DC resistors of high-power inductor equipment.

Test Current:1mA 10mA 1A 5A

Range of measurements:

1mA    1 Ω ~ 20KΩ

10mA   1 Ω ~ 2 KΩ

1A    10mΩ ~ 20Ω

5A    1mΩ ~ 4Ω

Accuracy of measurement:±(0.2 % full range ± 2 words)

Data storage:255

display:LCD display     Resistance displayed as 4 1/2

Maximum Resolution:0.1 μΩ

power supply:AC 220V ± 22V, 50Hz ± 2Hz        Safety tube 5A

Maximum power consumption:150W,Test current is 5A

work environment:Environmental temperature: 0 ° ~ 40 ° Relative humidity: ≤ 80 %

volume:200mm x 400mm x 280mm

weight:6Kg

Compact size, light weight.

Full Chinese menu operation, simple and convenient operation.

The measurement speed is fast and the data is accurate and stable.

With automatic discharge and discharge indication function, reduce misoperation, ensure the safety of equipment and personnel.
