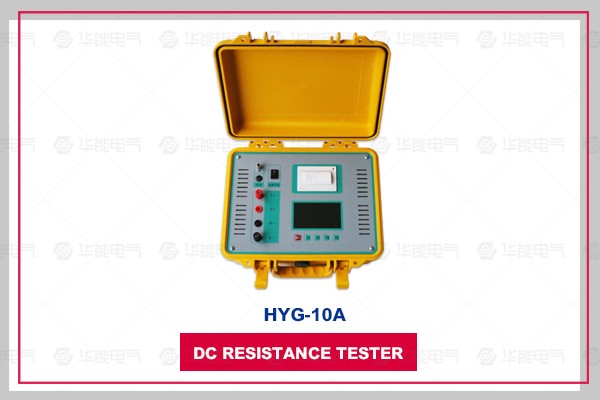

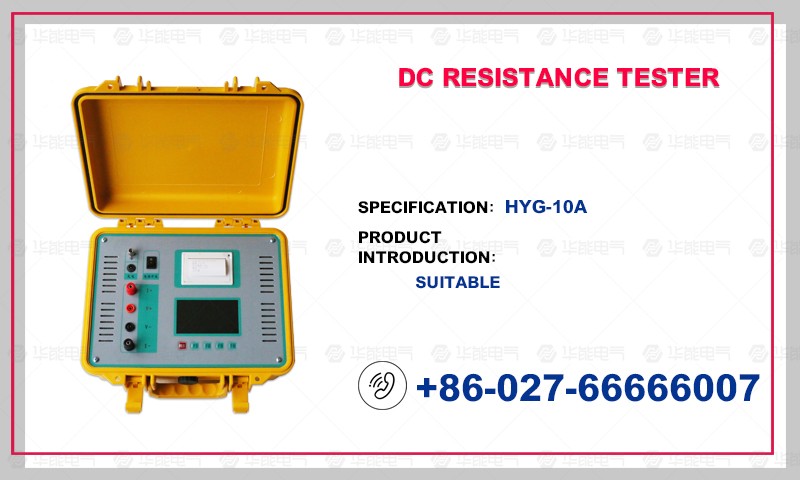

The DC resistance test of transformer windings is an indispensable test project after Transformer is transferred, overhauled and switched. Under normal circumstances, measuring the DC resistance of transformer windings and high-power inductive equipment by traditional methods(bridge method and pressure drop method) is a time-consuming and laborious task. In order to change this situation, shorten the measurement time and reduce the workload of the testers, the company has developed the HYG-5A DC Resistance Rapid Test Instrument(hereinafter referred to as the Direct Resistance Instrument). It adopts the new power supply technology, which has the characteristics of stable performance, rapid measurement, compact volume, convenient use, high measurement accuracy, and good data repeatability. It is an ideal equipment for measuring Transformer windings and DC resistors of high-power inductor equipment.

Test Current:1mA 10mA 1A 5A 10A

Range of measurements

1mA:10 Ω ~ 20KΩ

10mA:1 Ω ~ 2 KΩ

1A:10mΩ ~ 20Ω

5A:1mΩ ~ 4Ω

10A:1mΩ ~ 2Ω

Accuracy of measurement:± 0.2 %(full range) ± 2 words

Data storage:255

display:LCD display,Resistance displayed as 4 1/2

Maximum Resolution:0.1 μΩ

power supply:AC 220V ± 22V, 50Hz ± 2Hz,Safety tube 5A

Maximum power consumption:400W,Test current is 10A

work environment:Environmental temperature: 0 ° ~ 40 ° Relative humidity: ≤ 80 %

volume:380 X 210 x 280(mm)

weight:8Kg,With accessories

Compact size, light weight.

Full Chinese menu operation, simple and convenient operation.

The measurement speed is fast and the data is accurate and stable.

With automatic discharge and discharge indication function, reduce misoperation, ensure the safety of equipment and personnel.
